Specifications

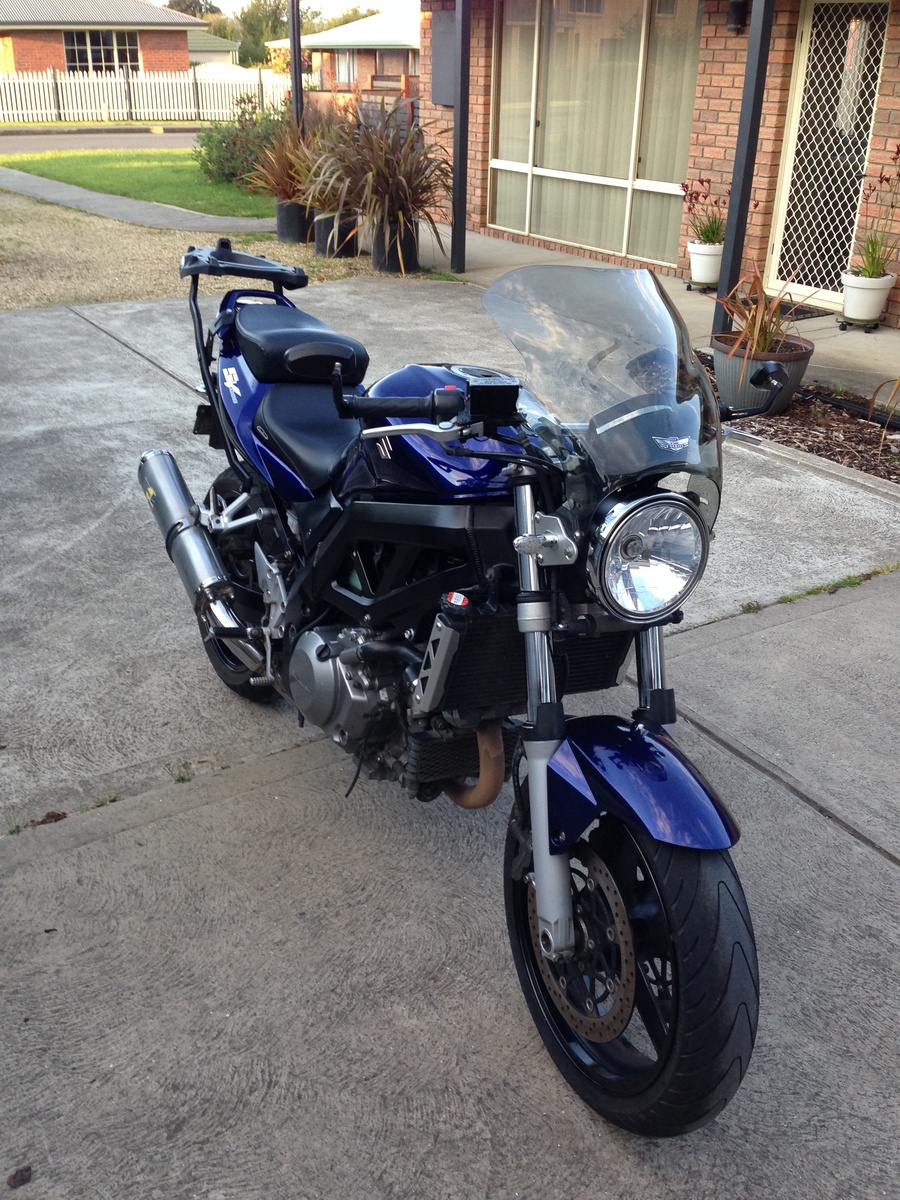

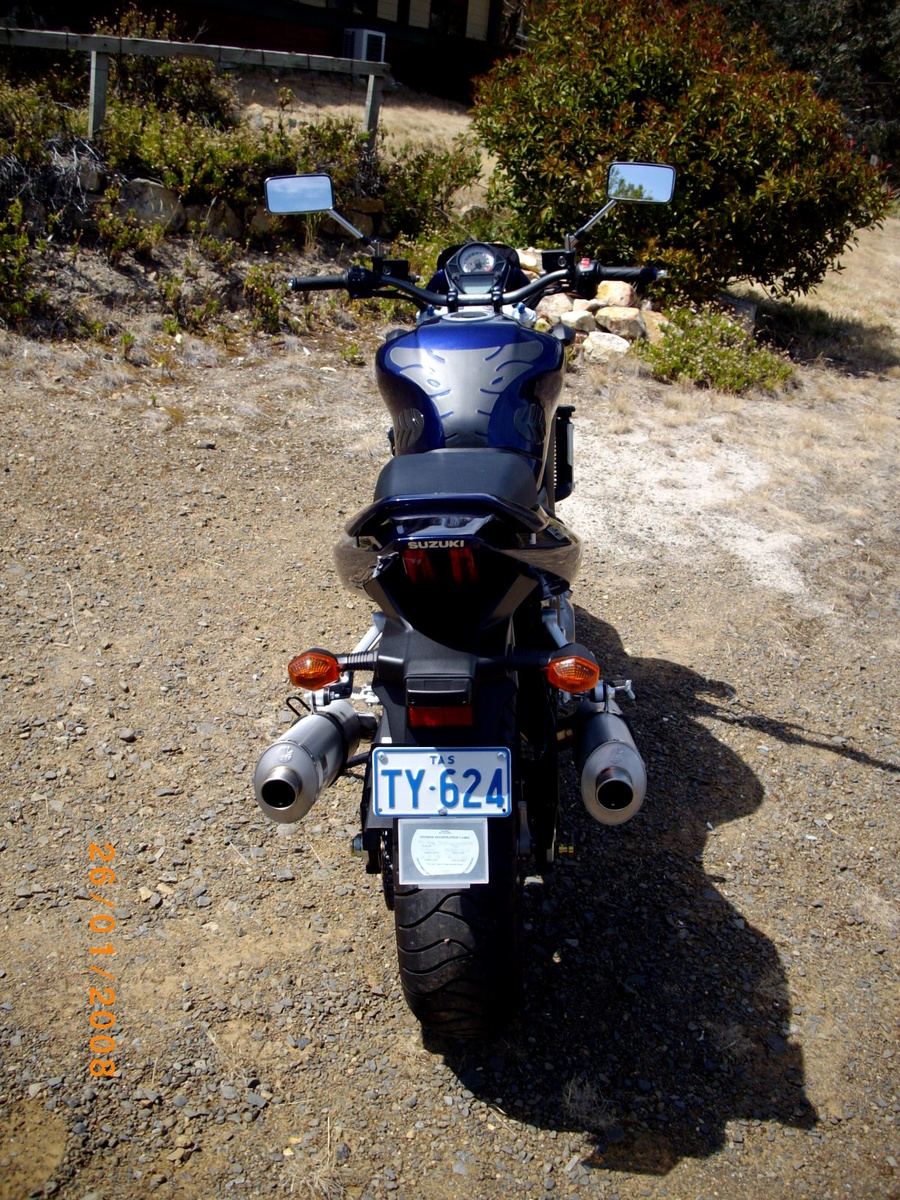

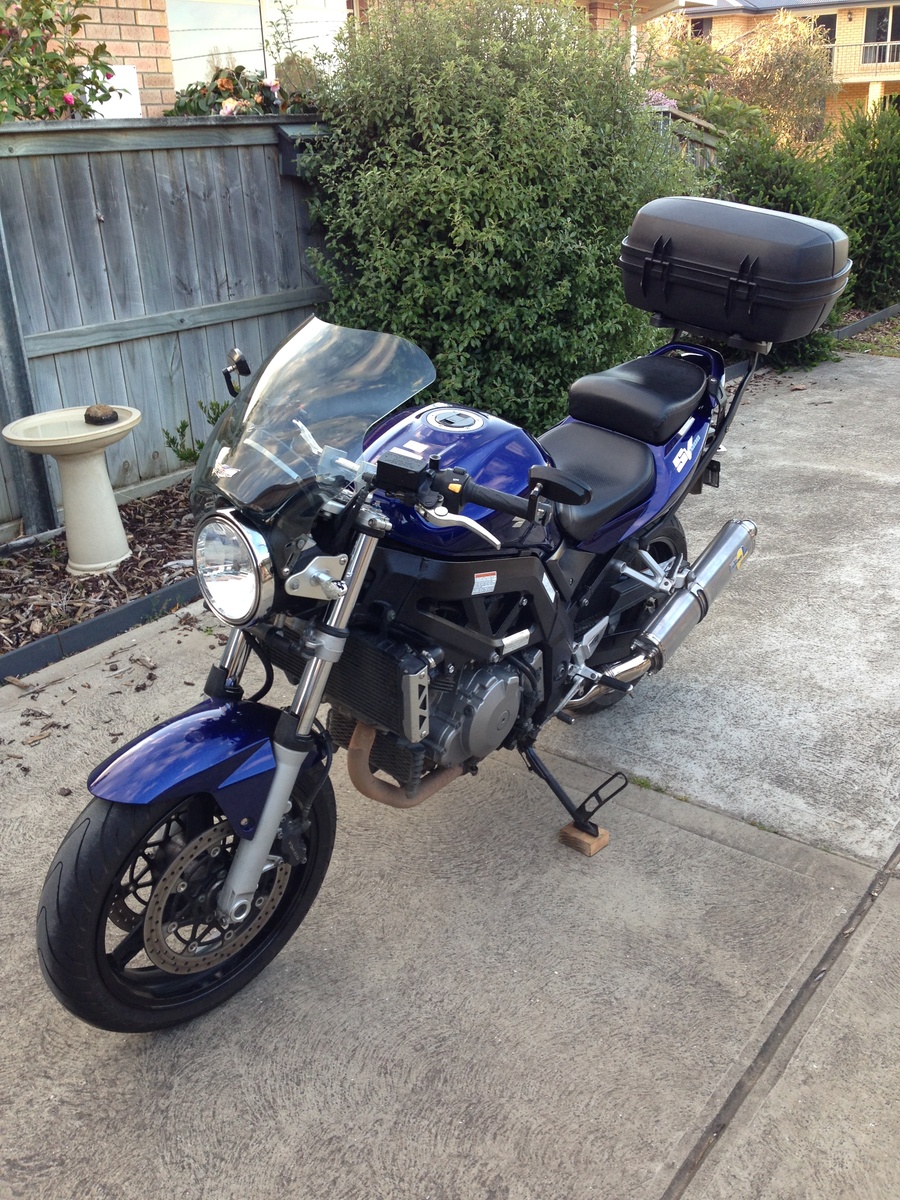

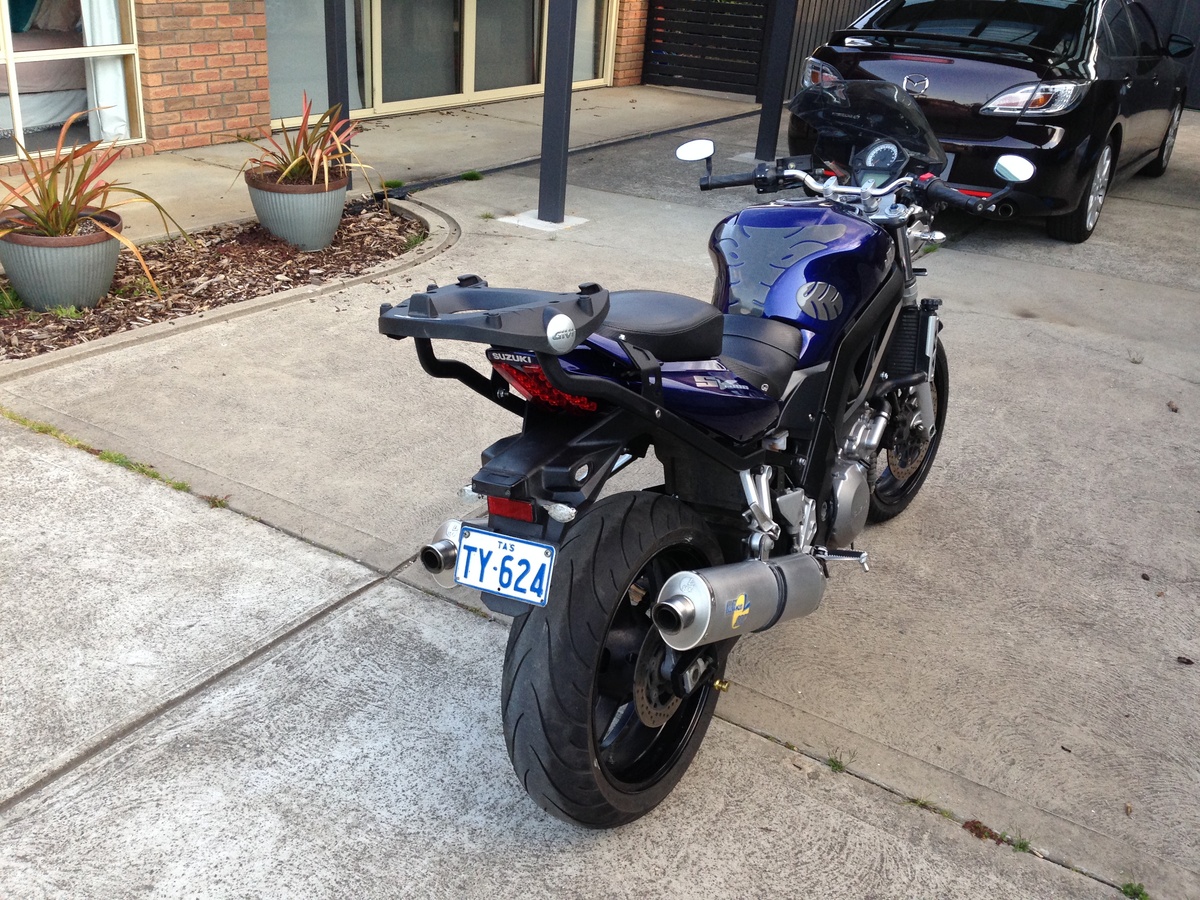

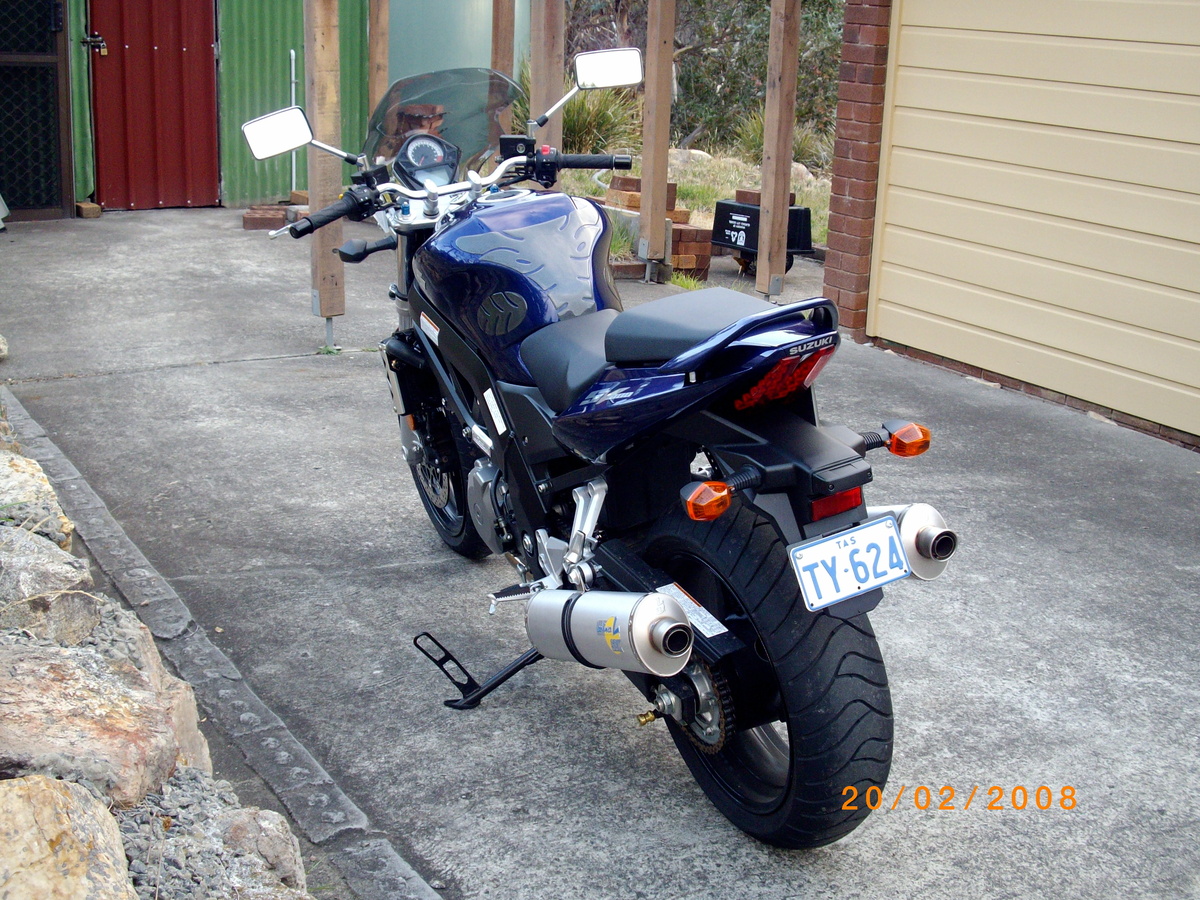

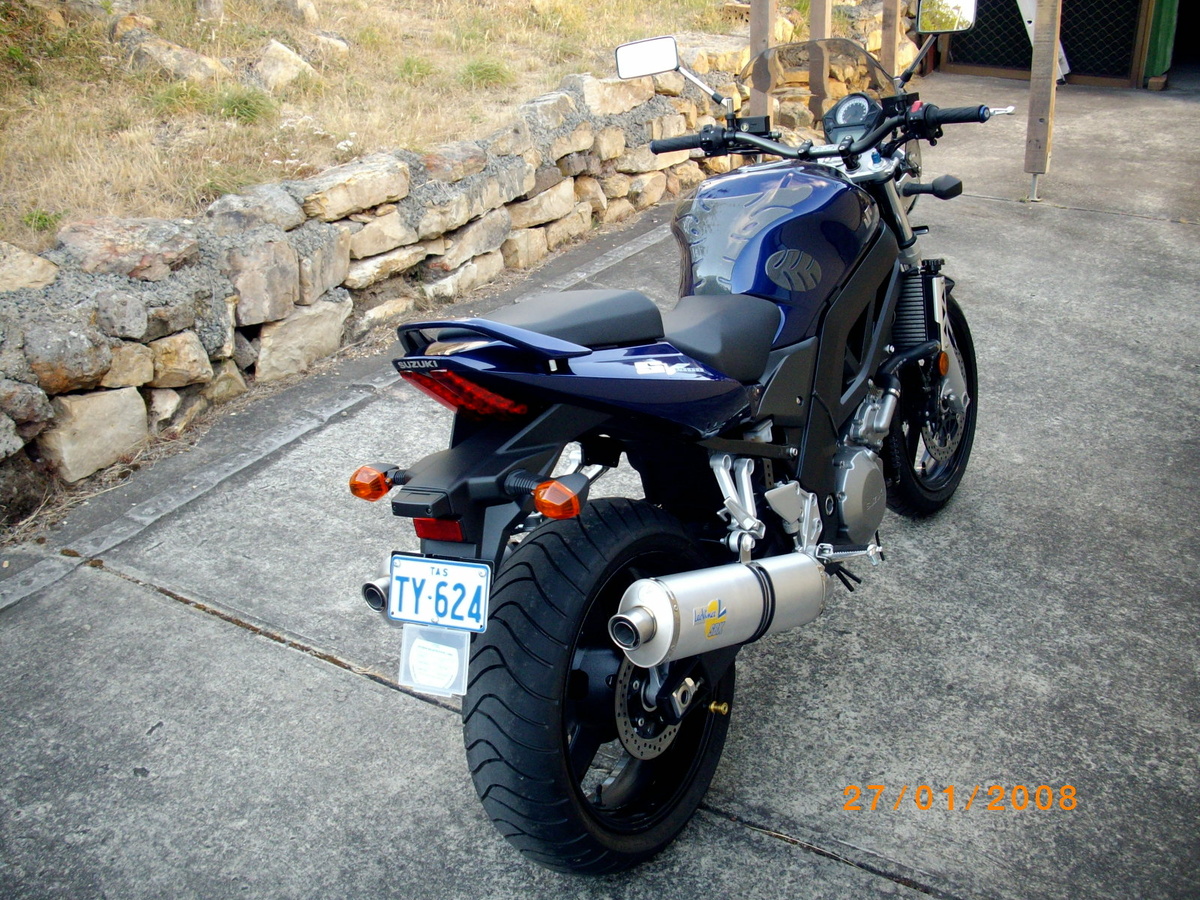

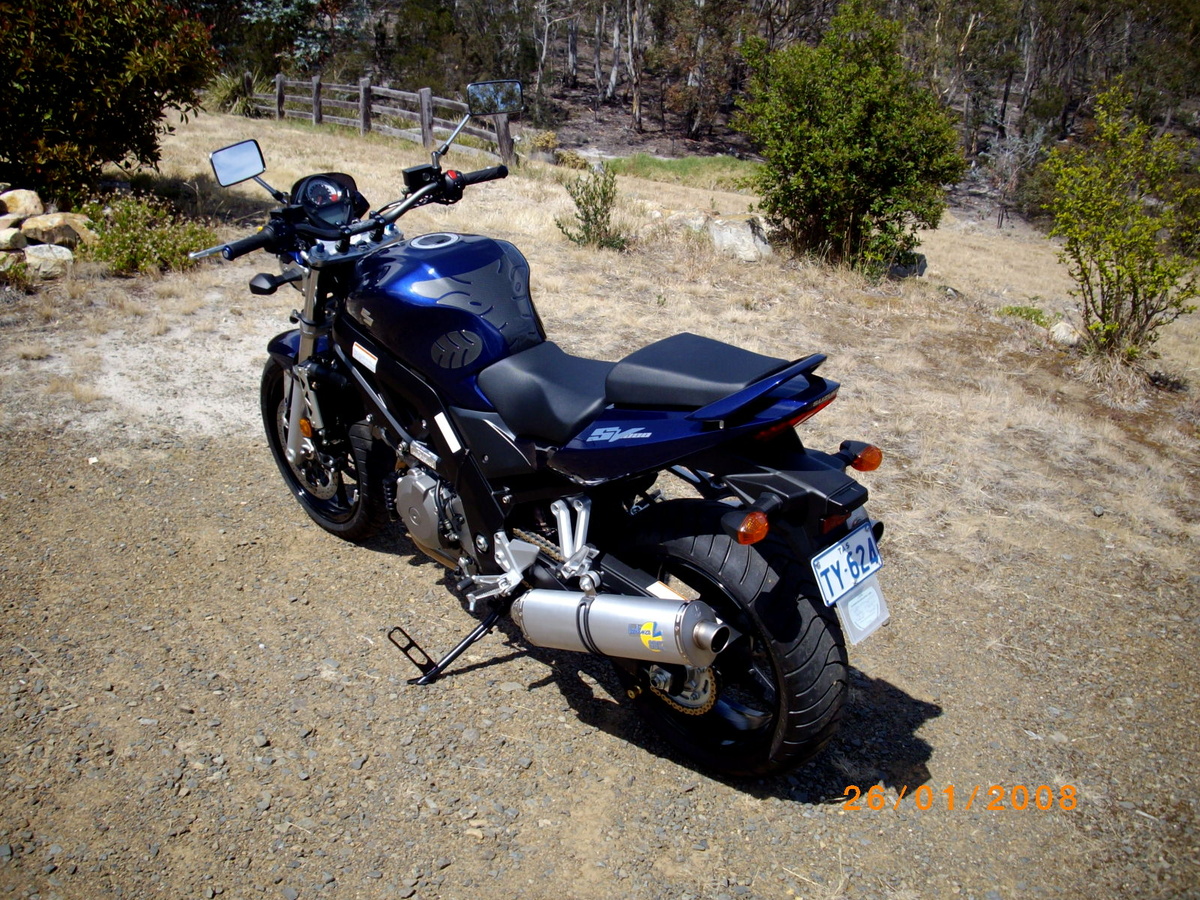

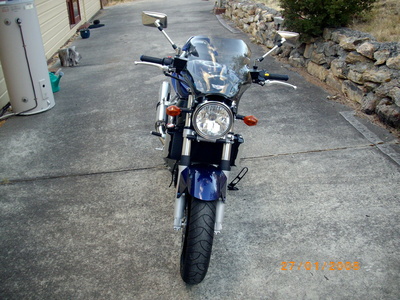

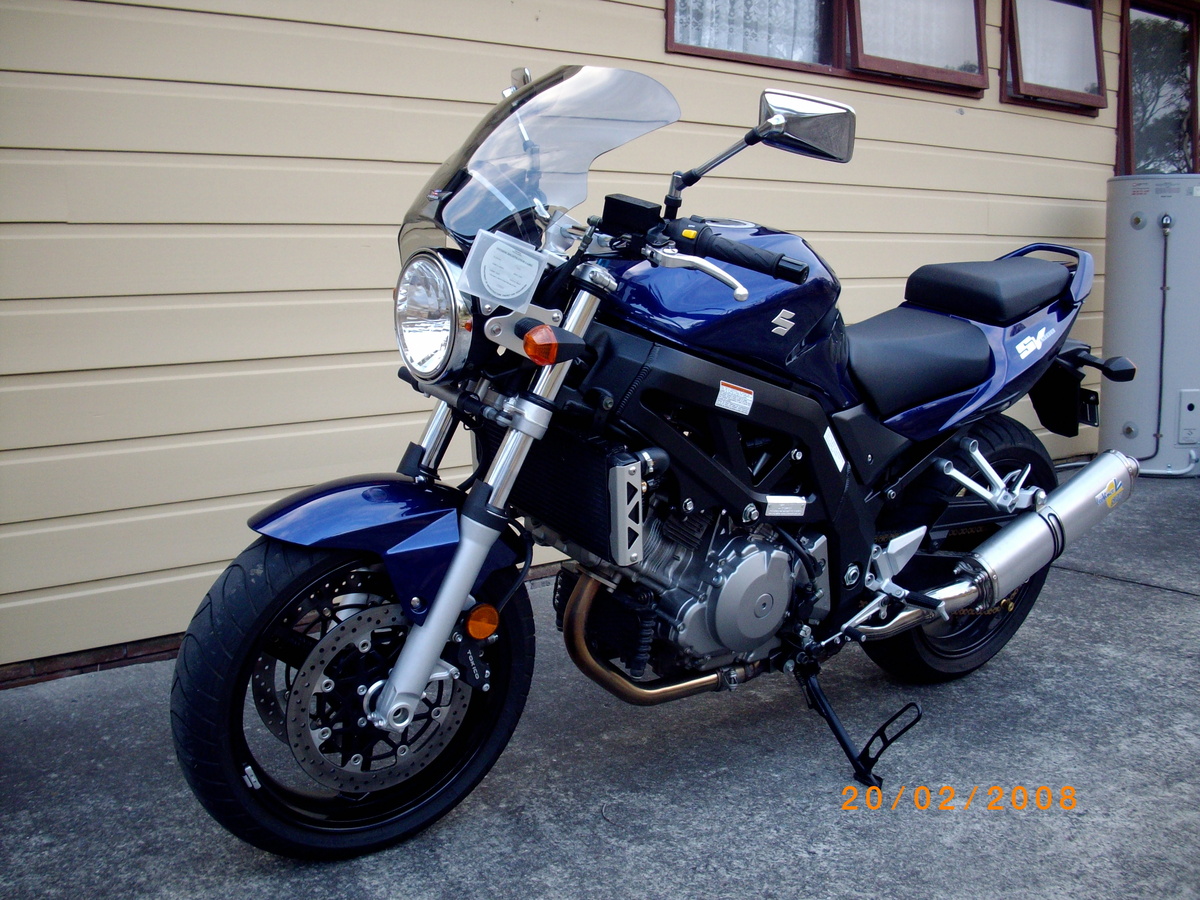

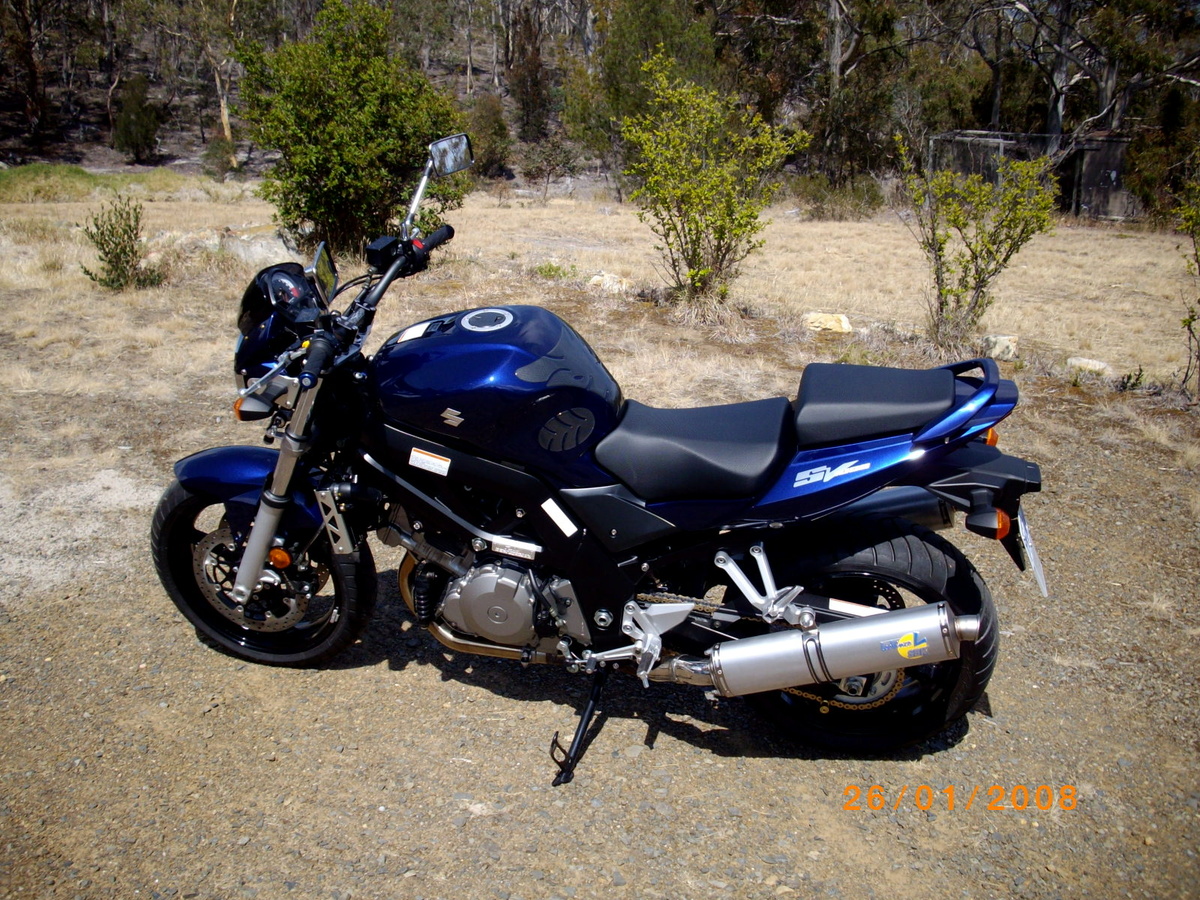

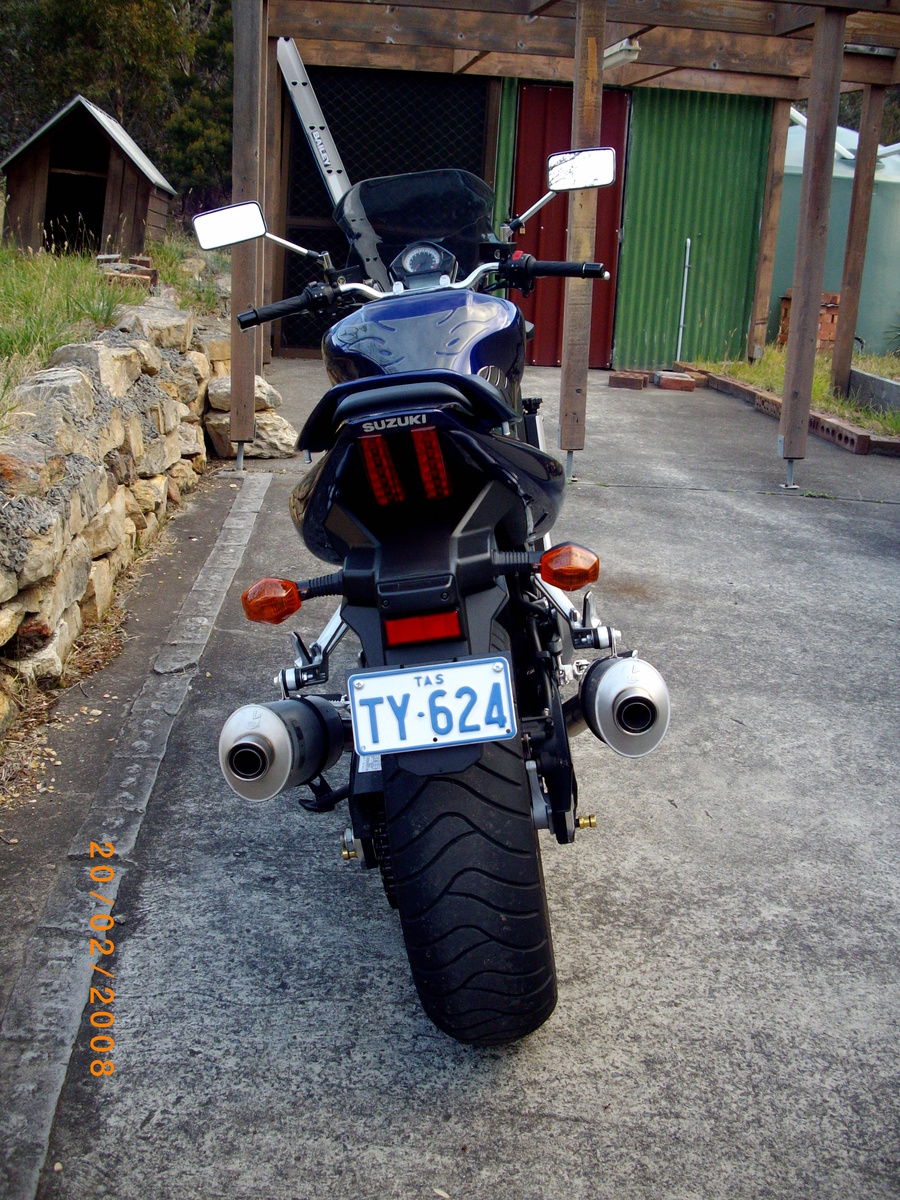

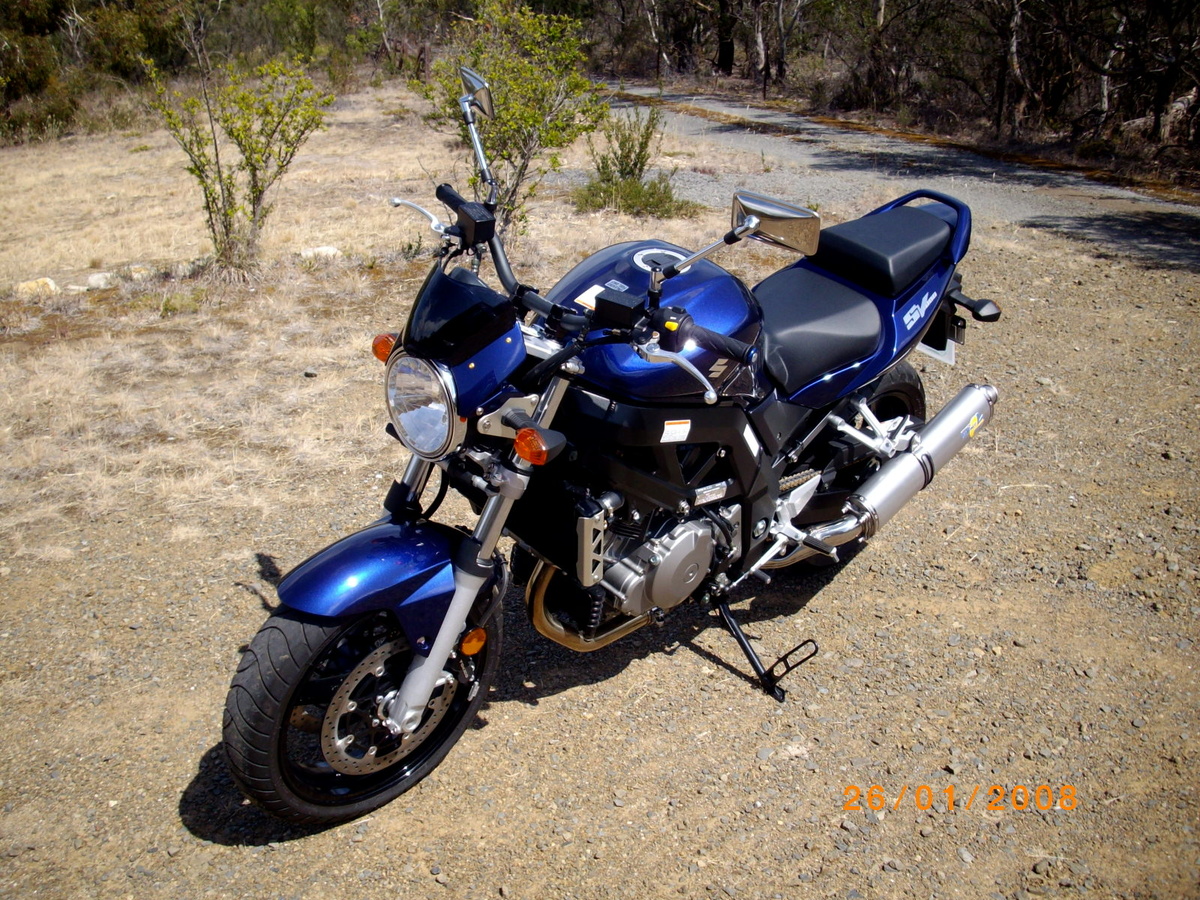

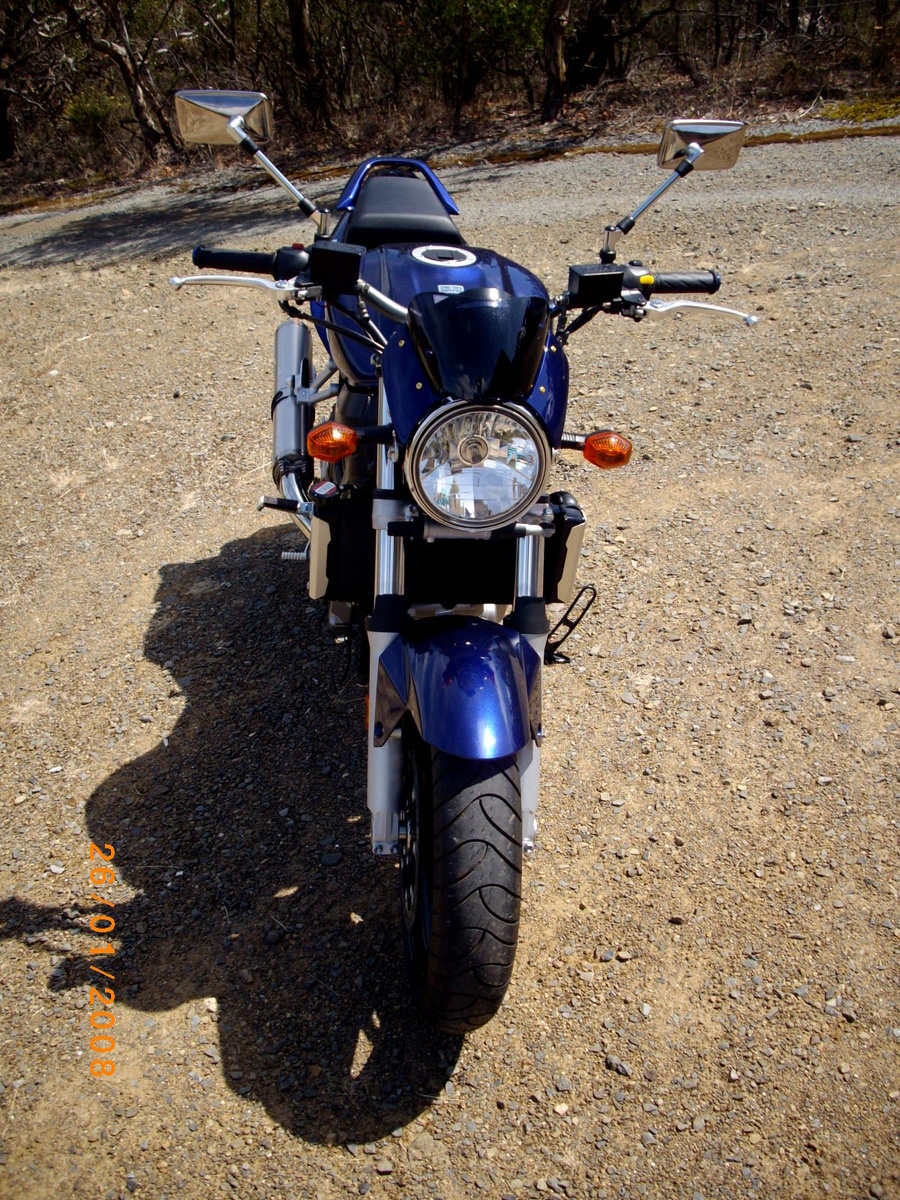

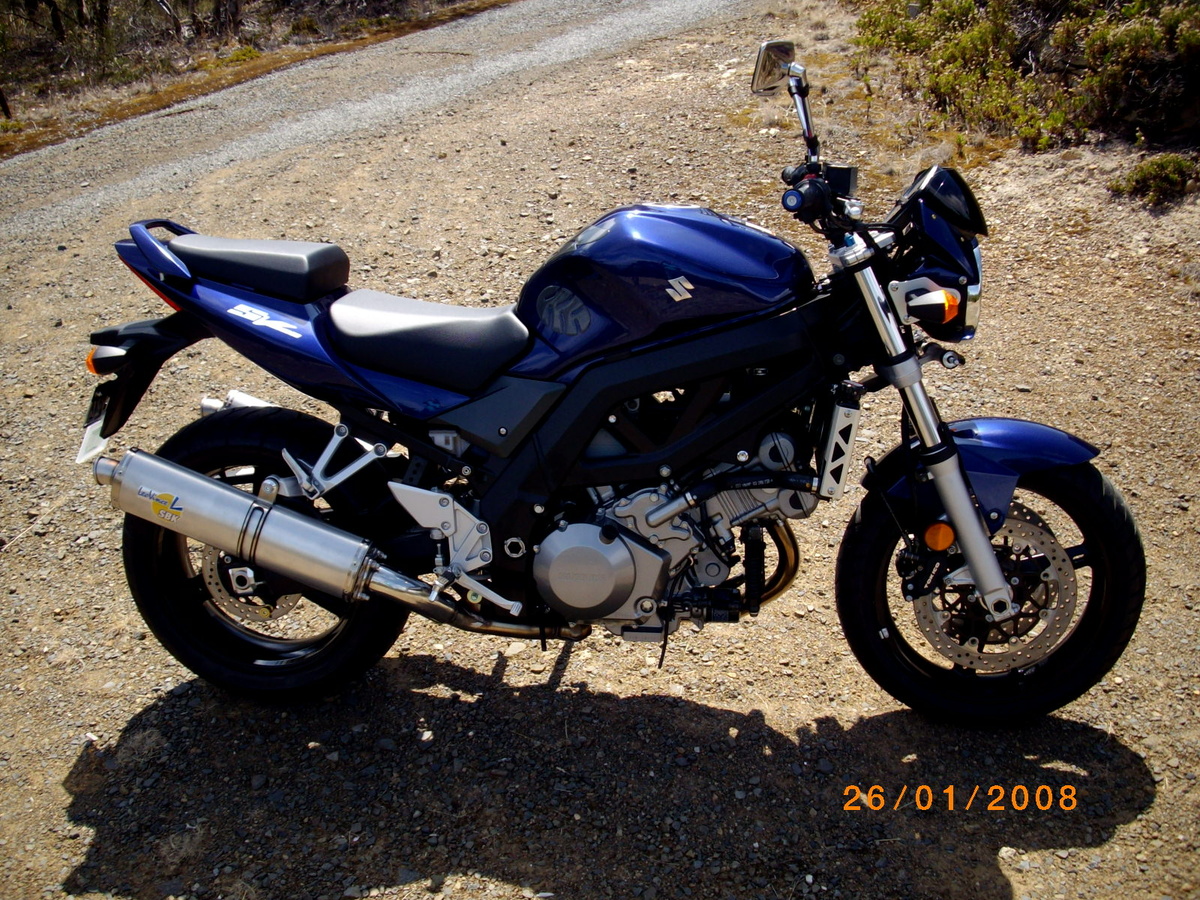

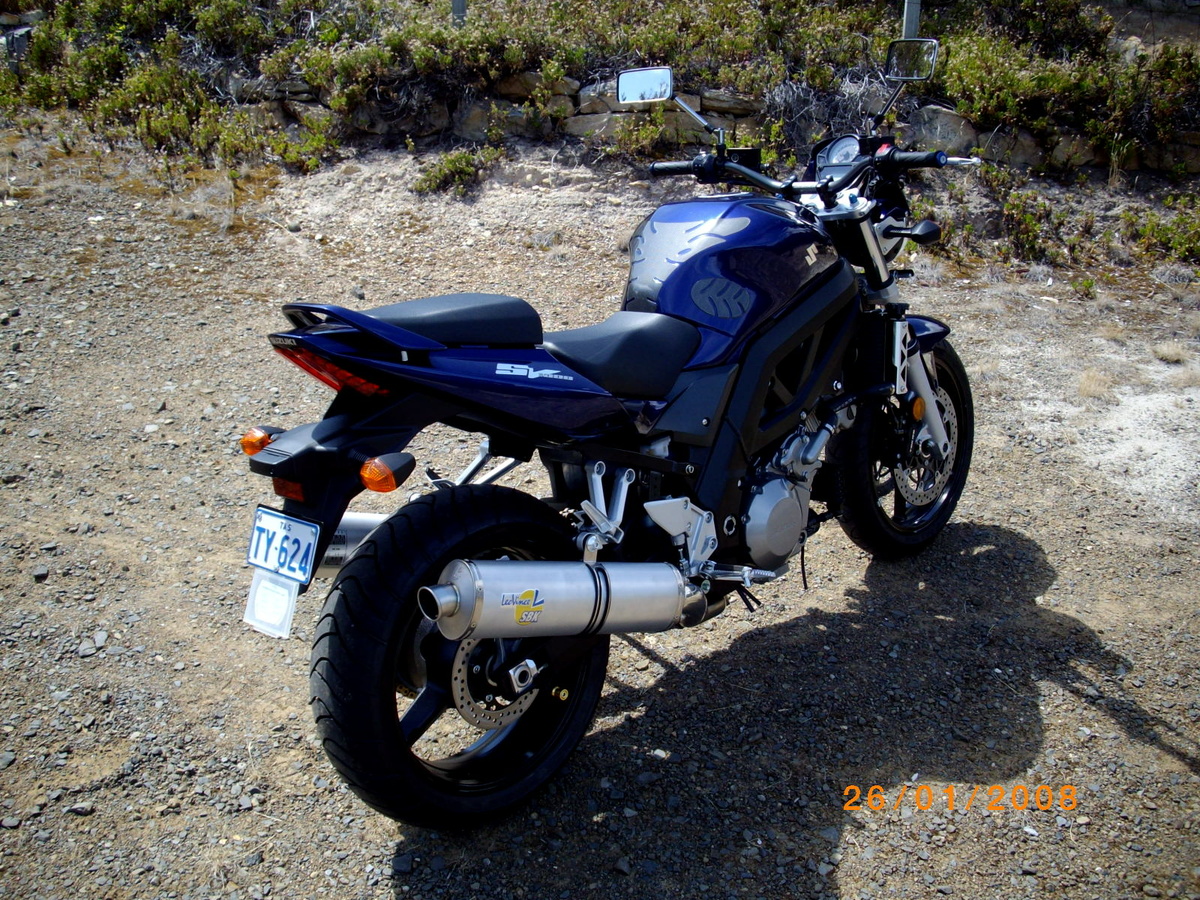

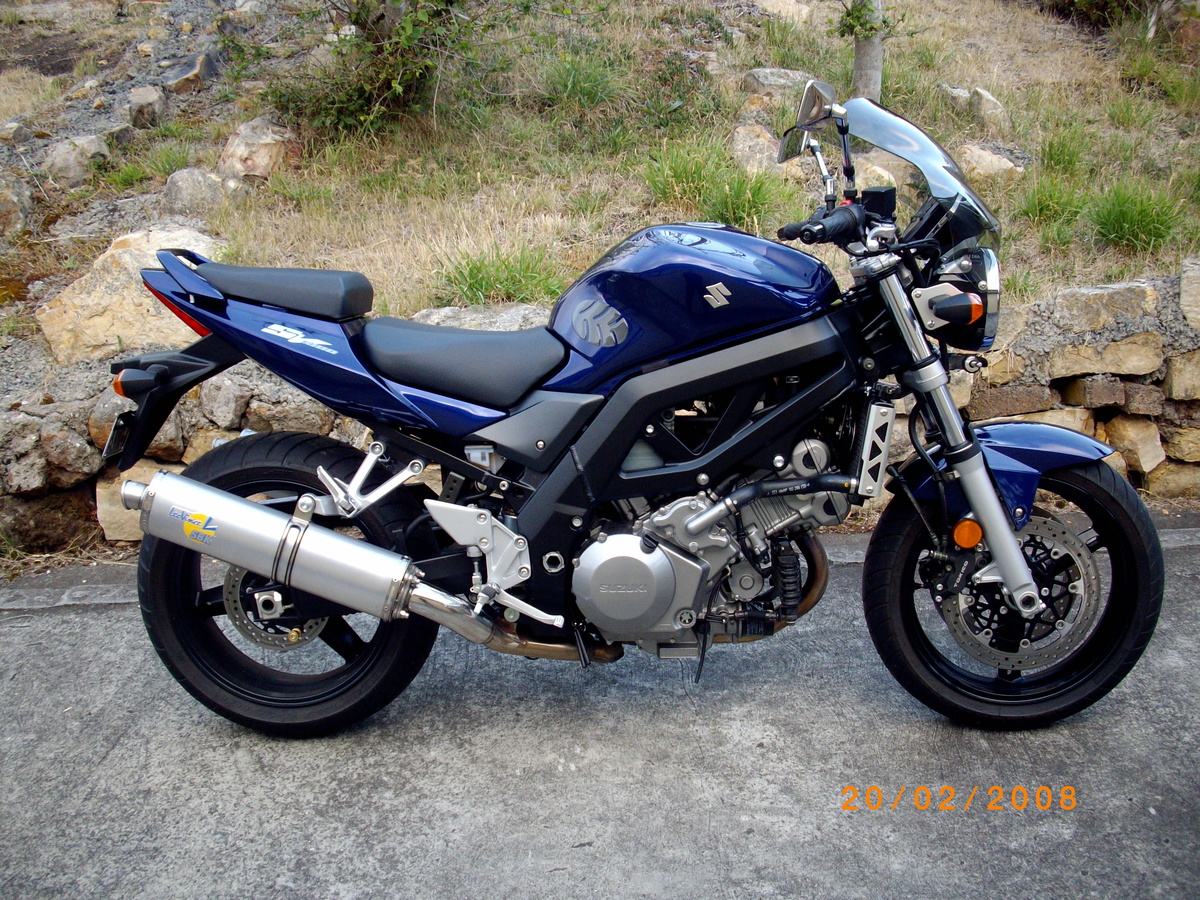

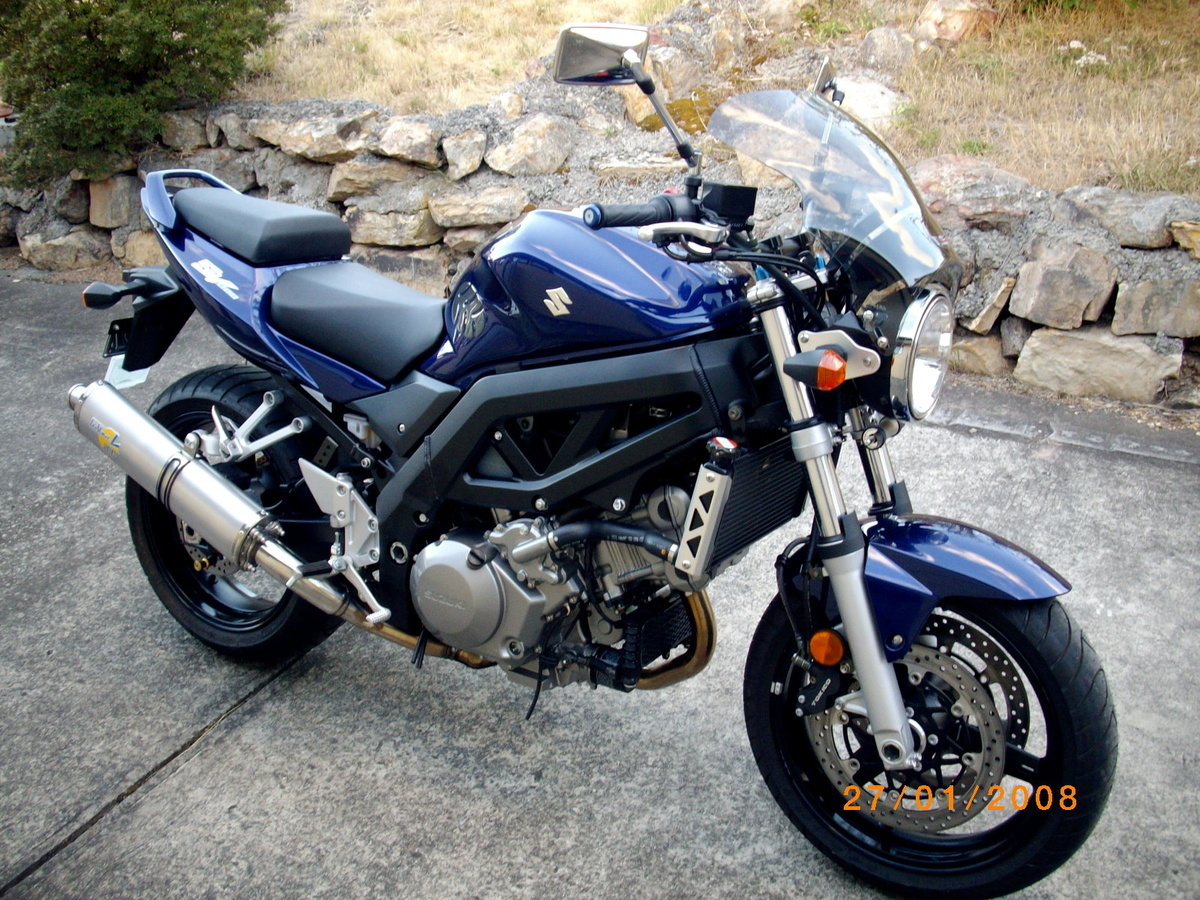

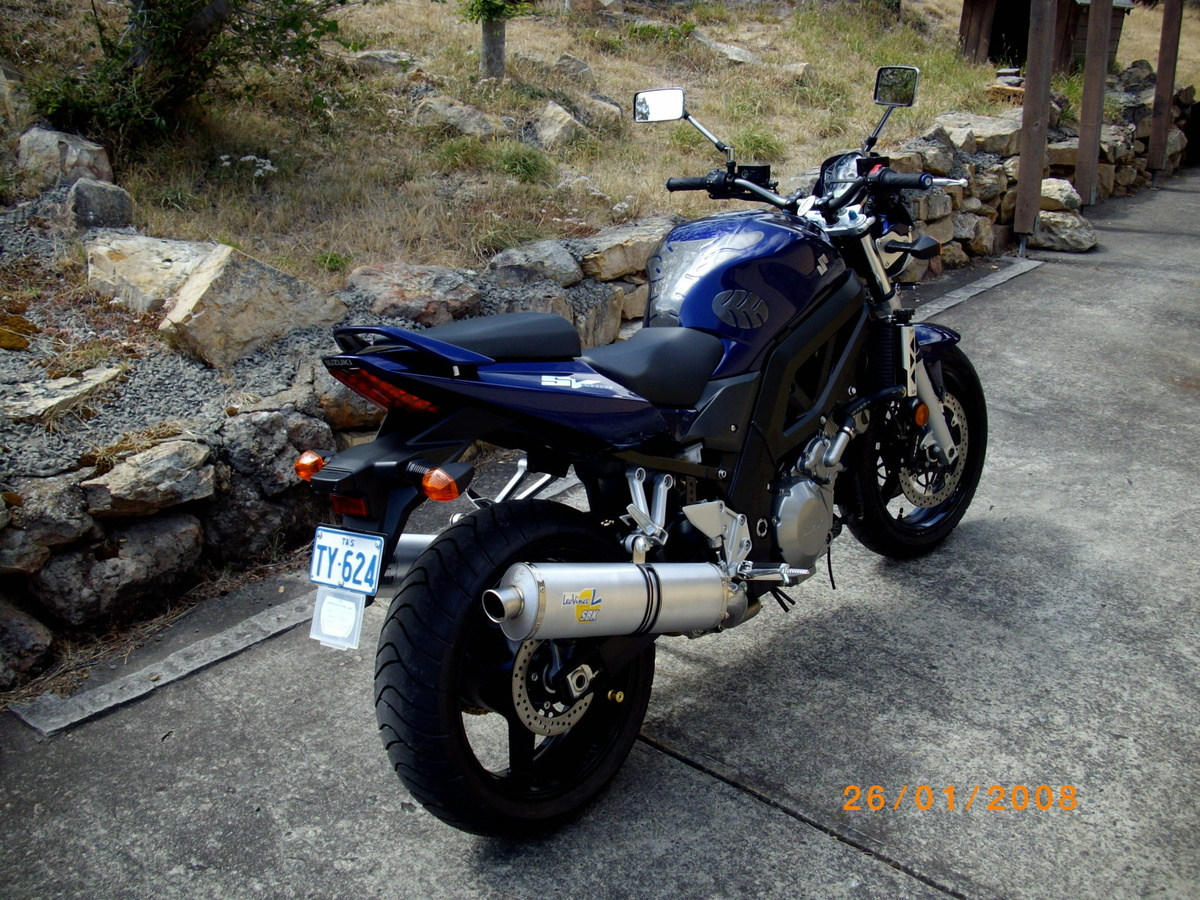

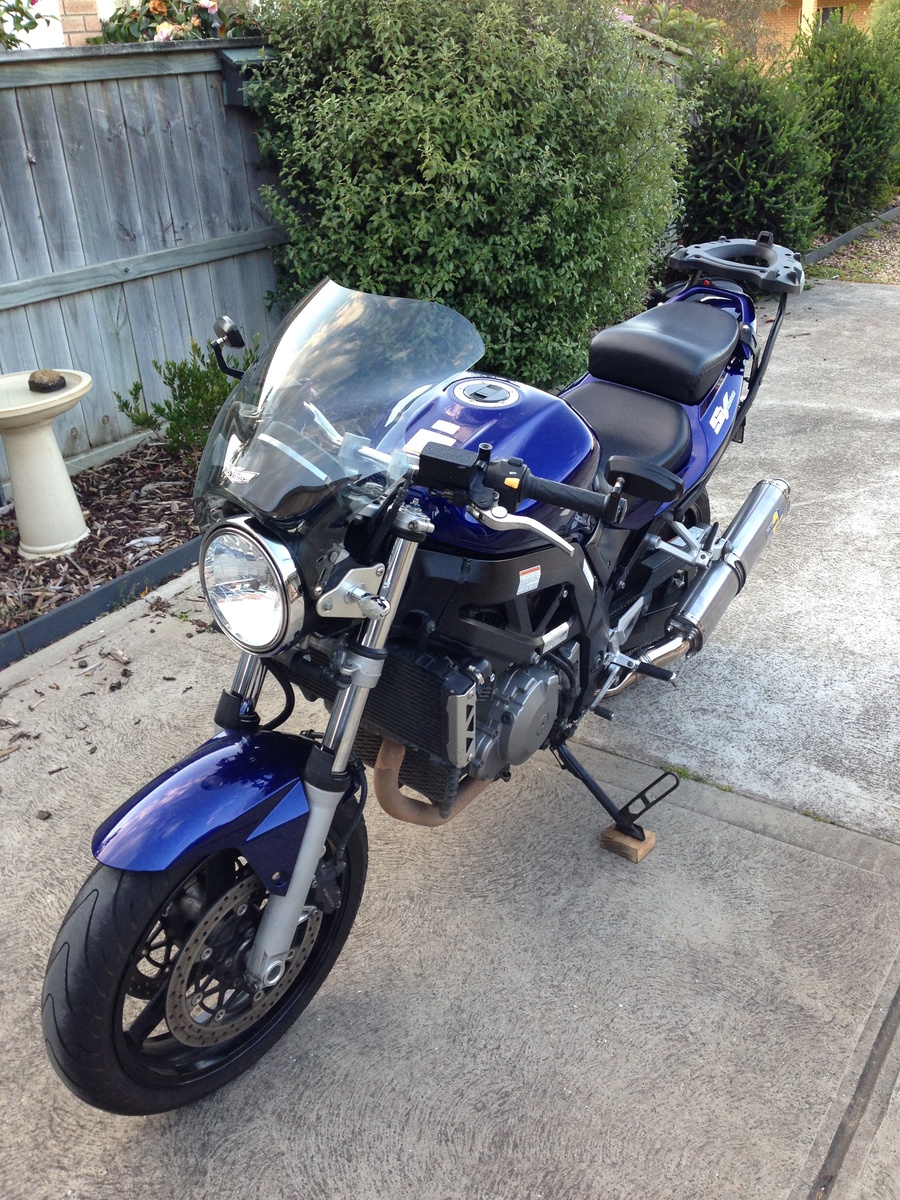

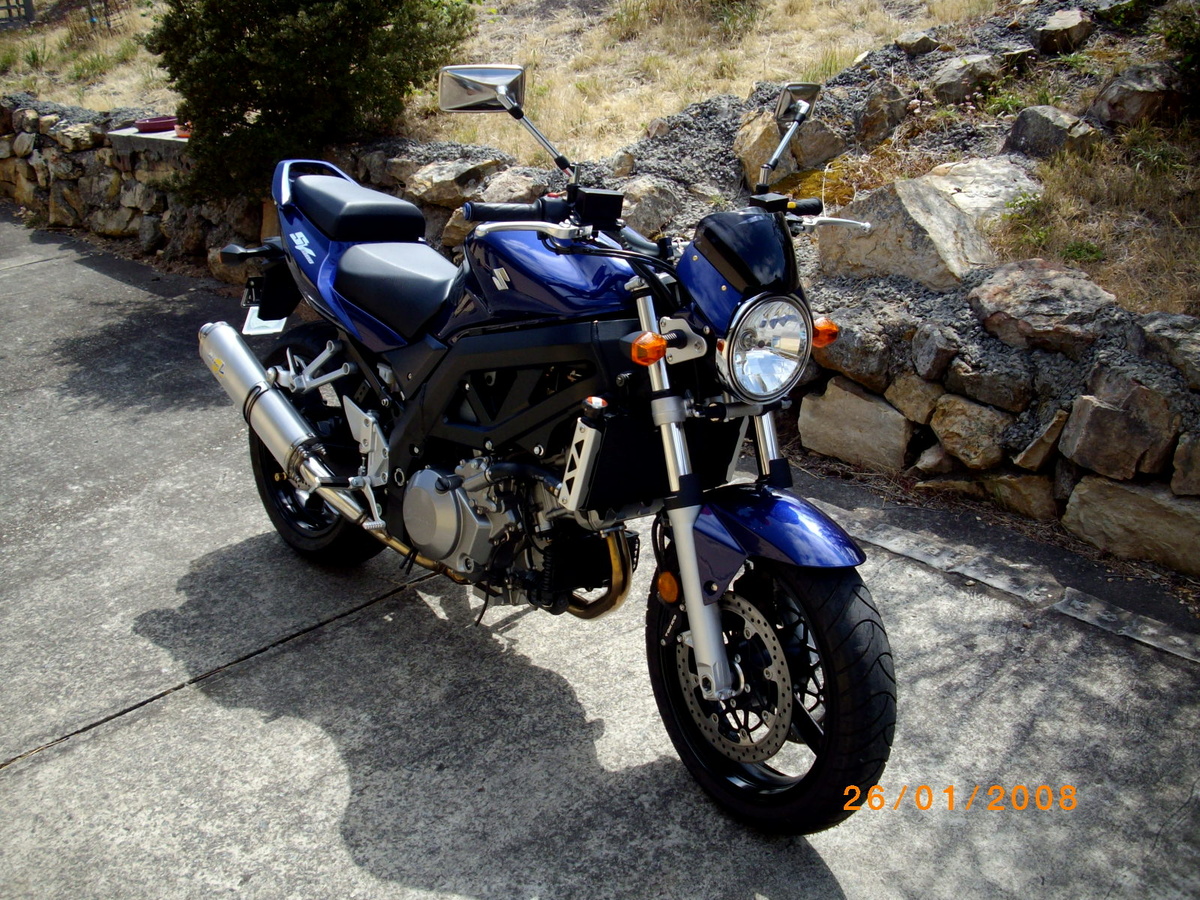

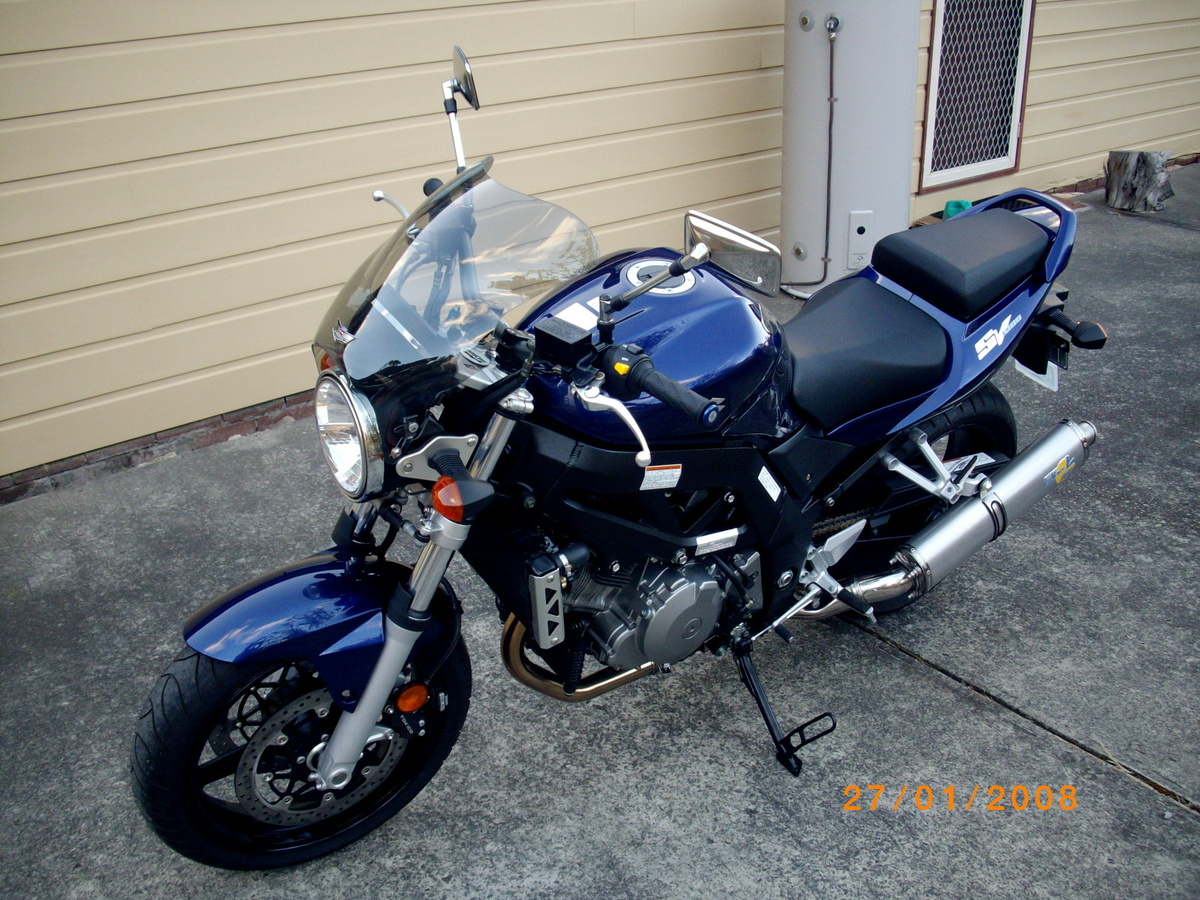

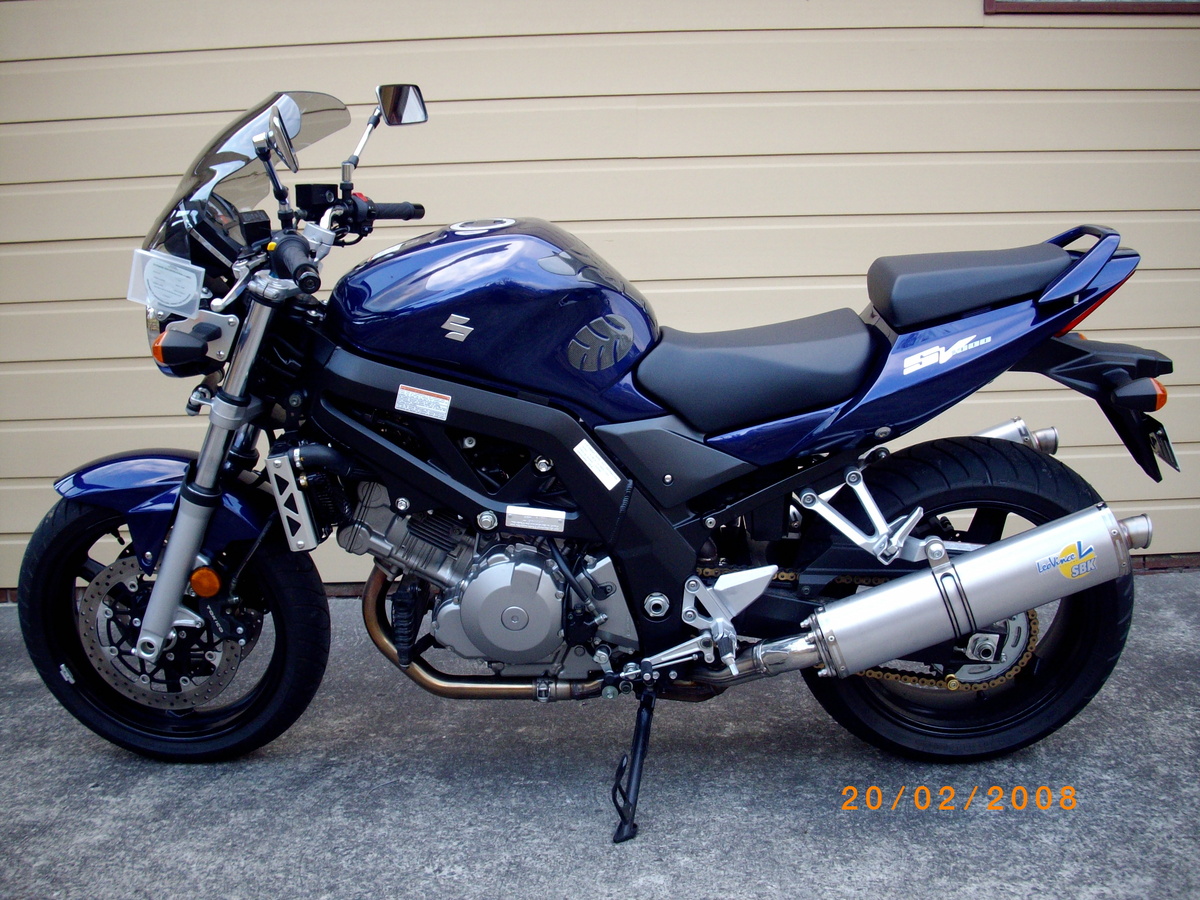

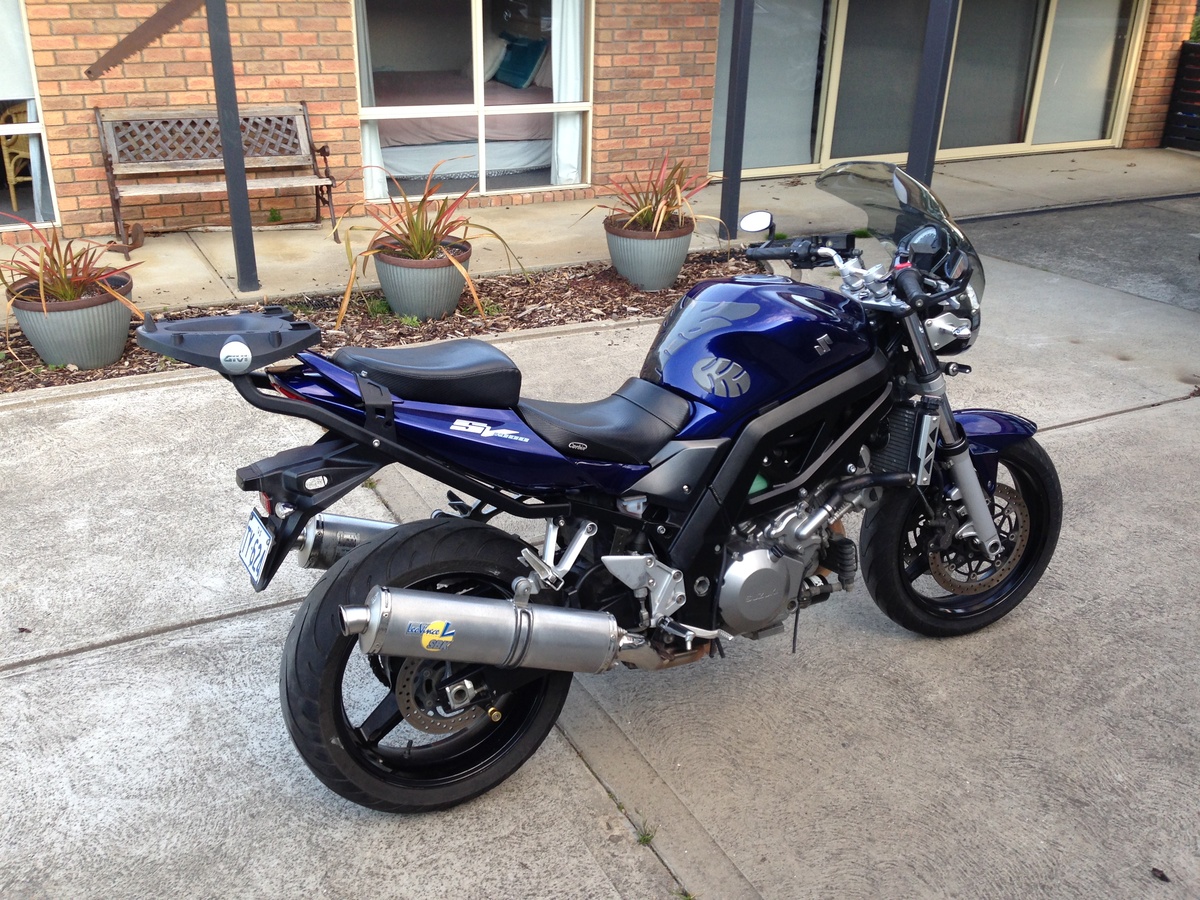

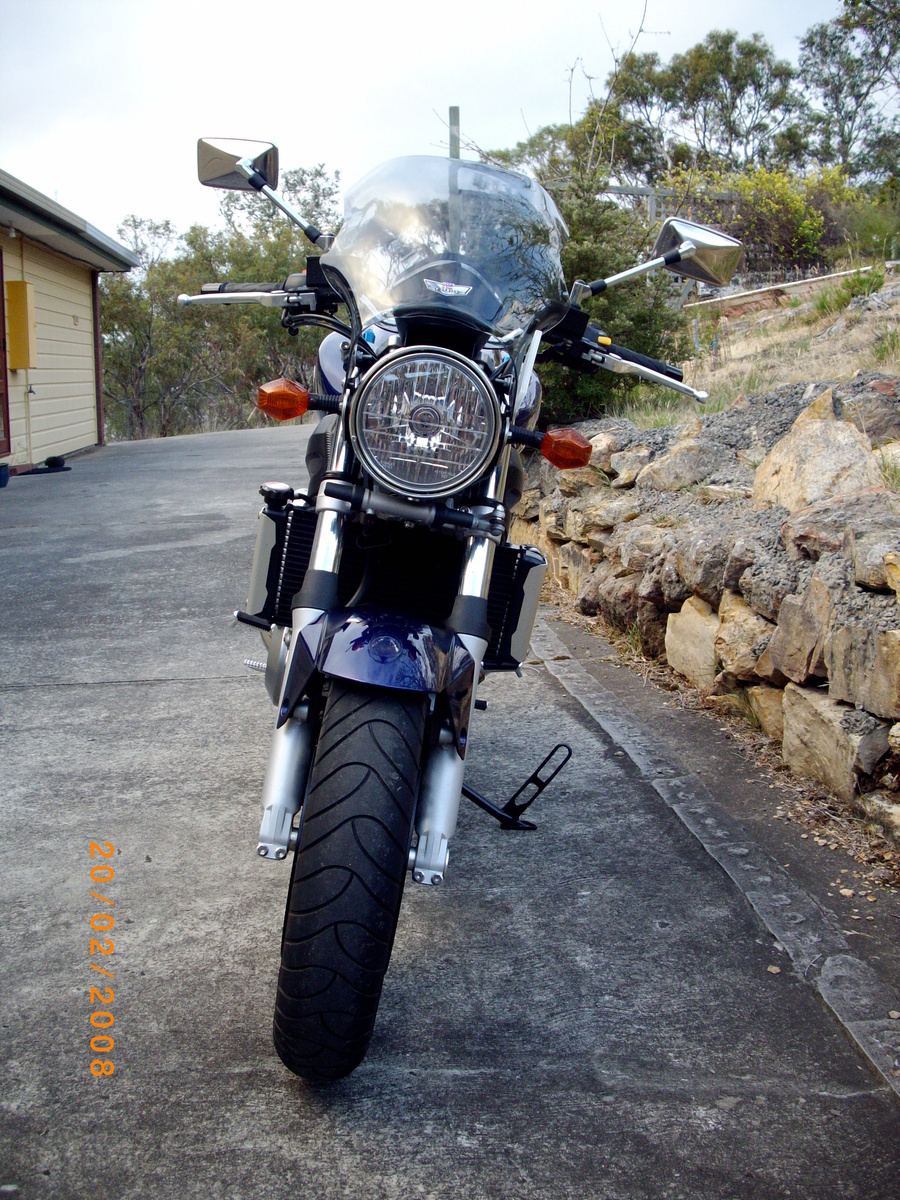

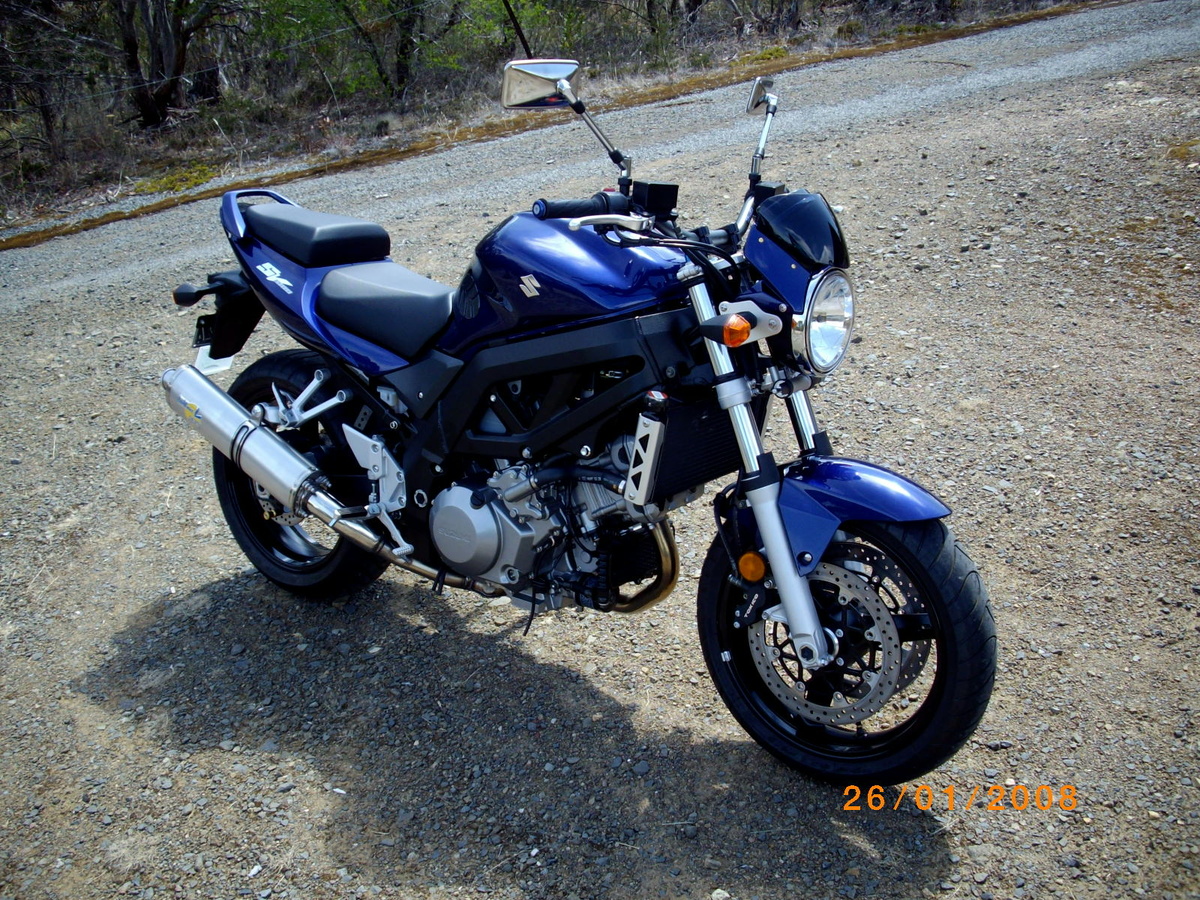

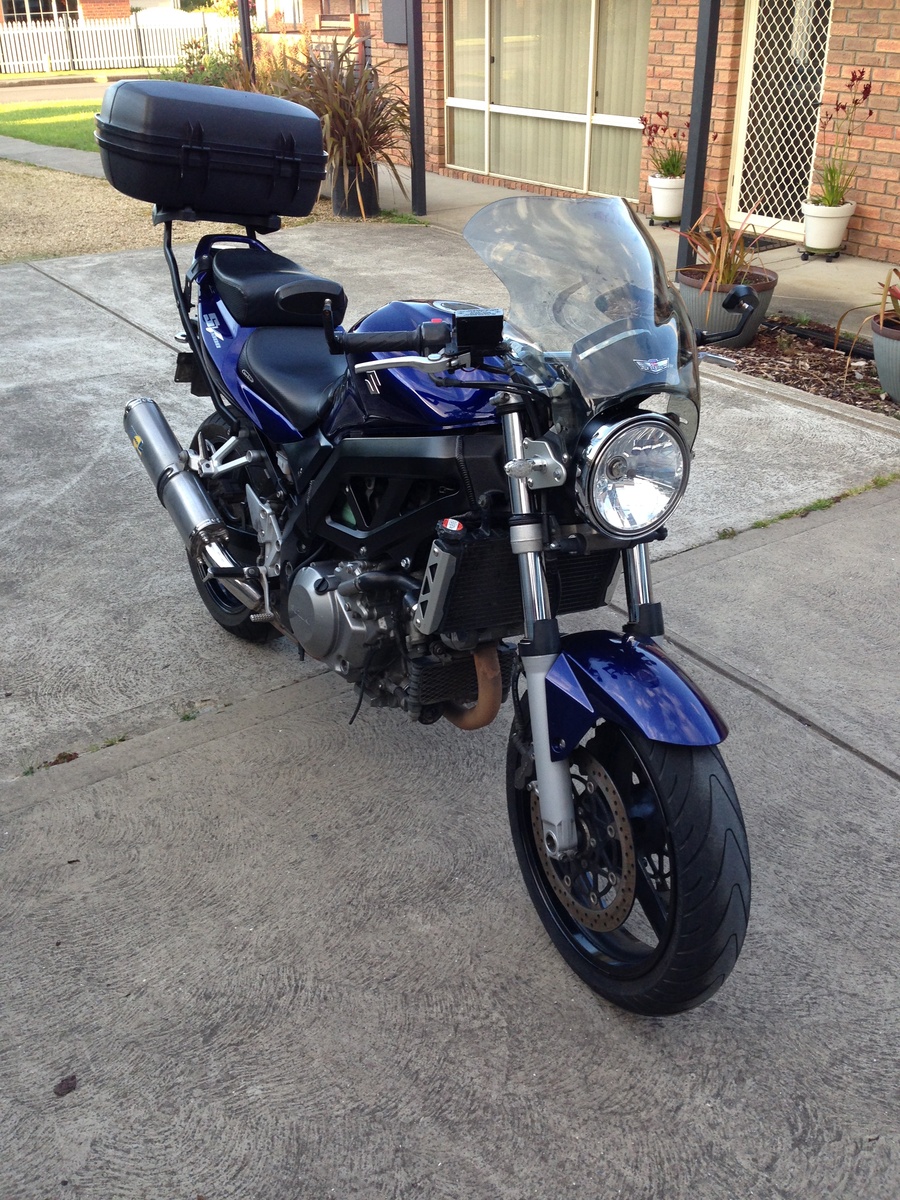

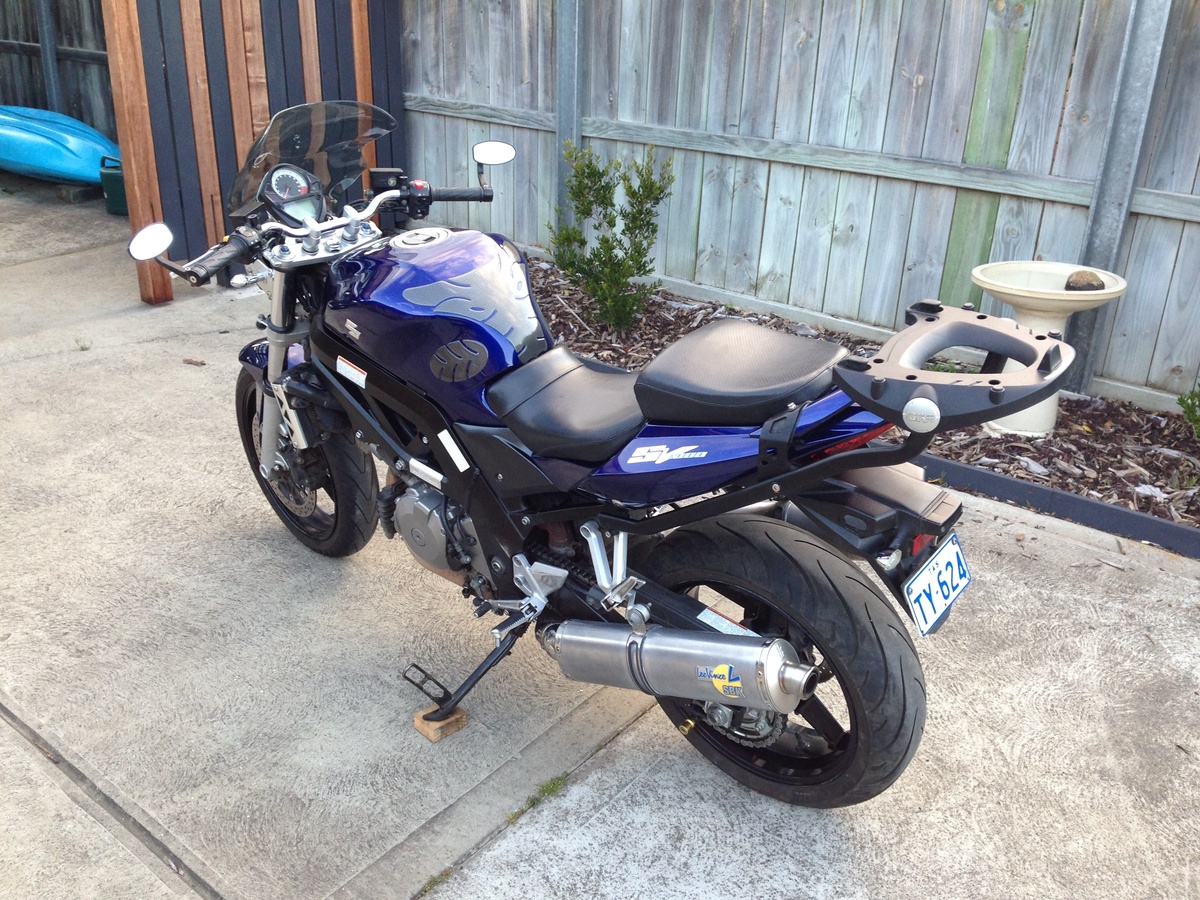

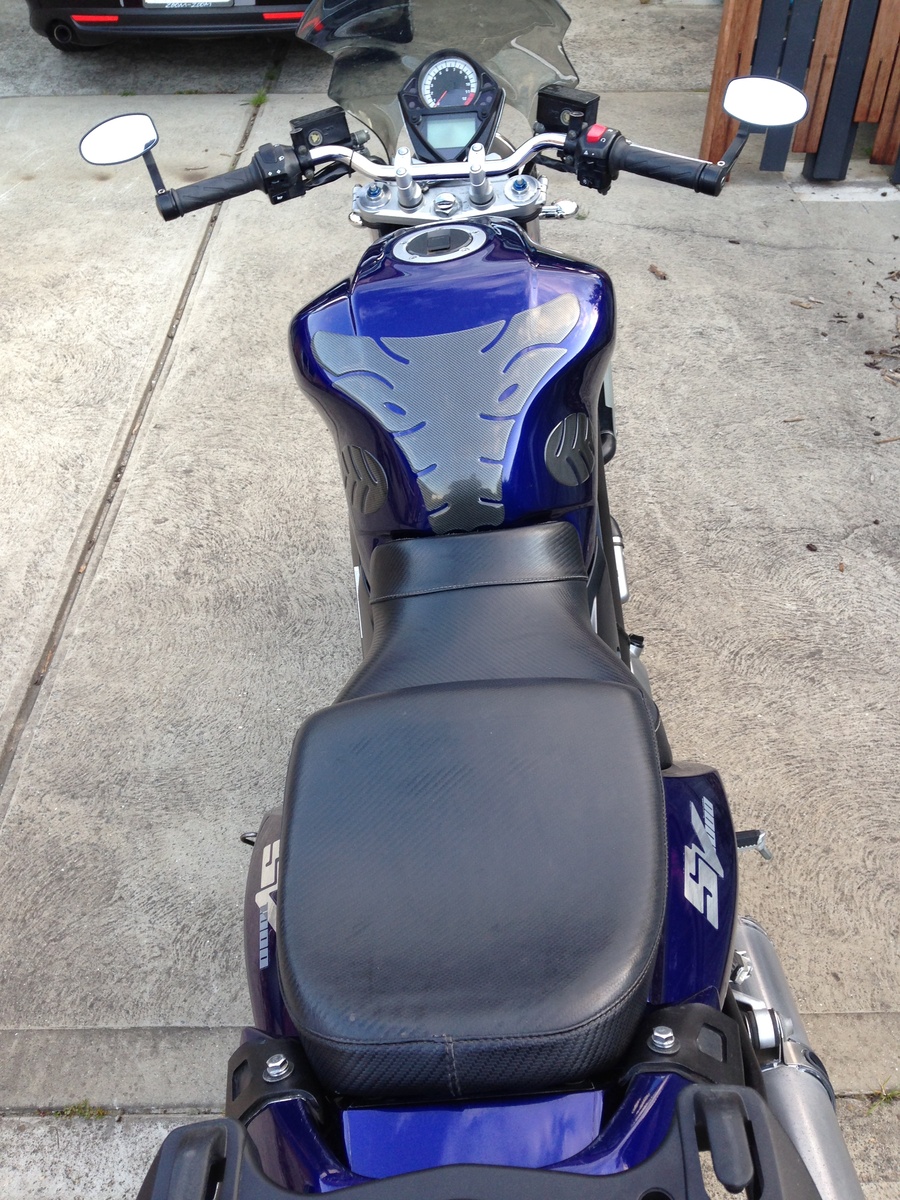

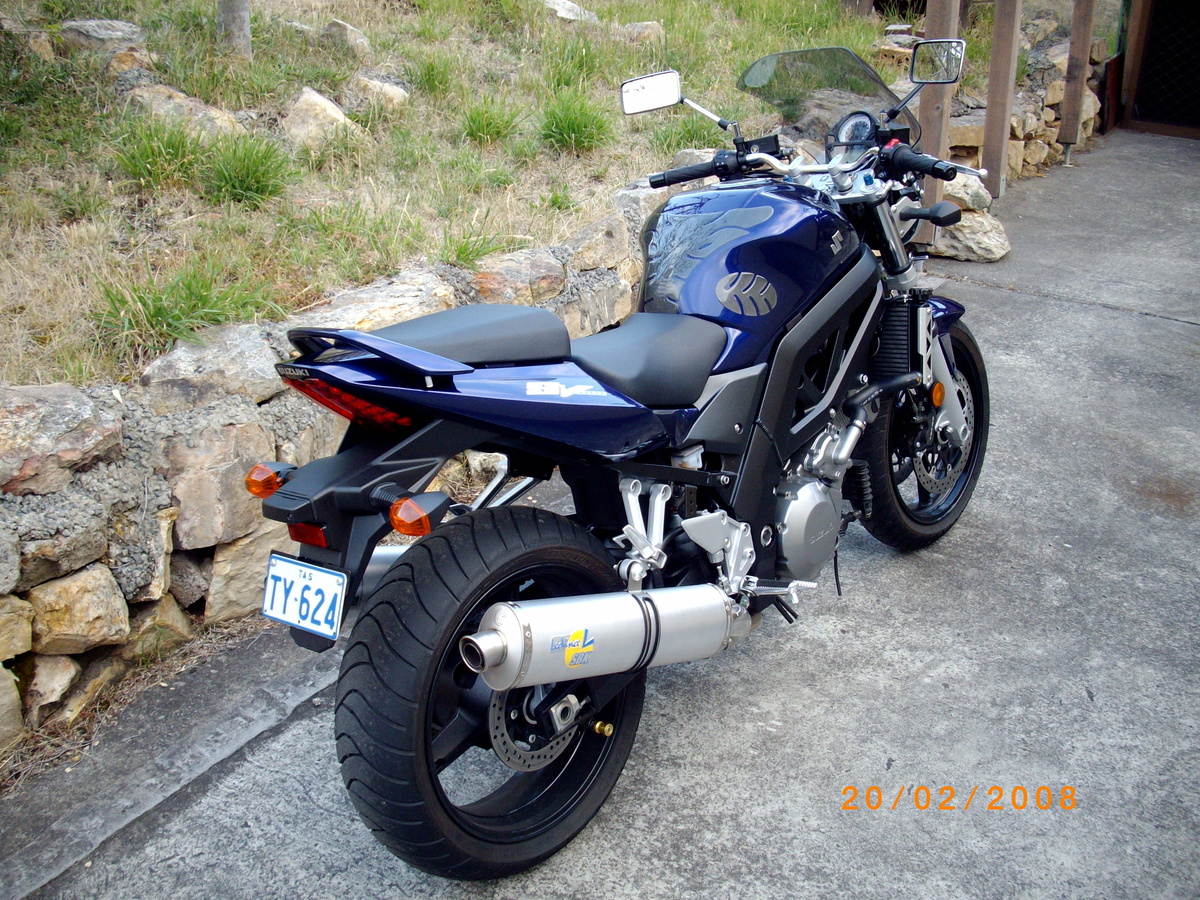

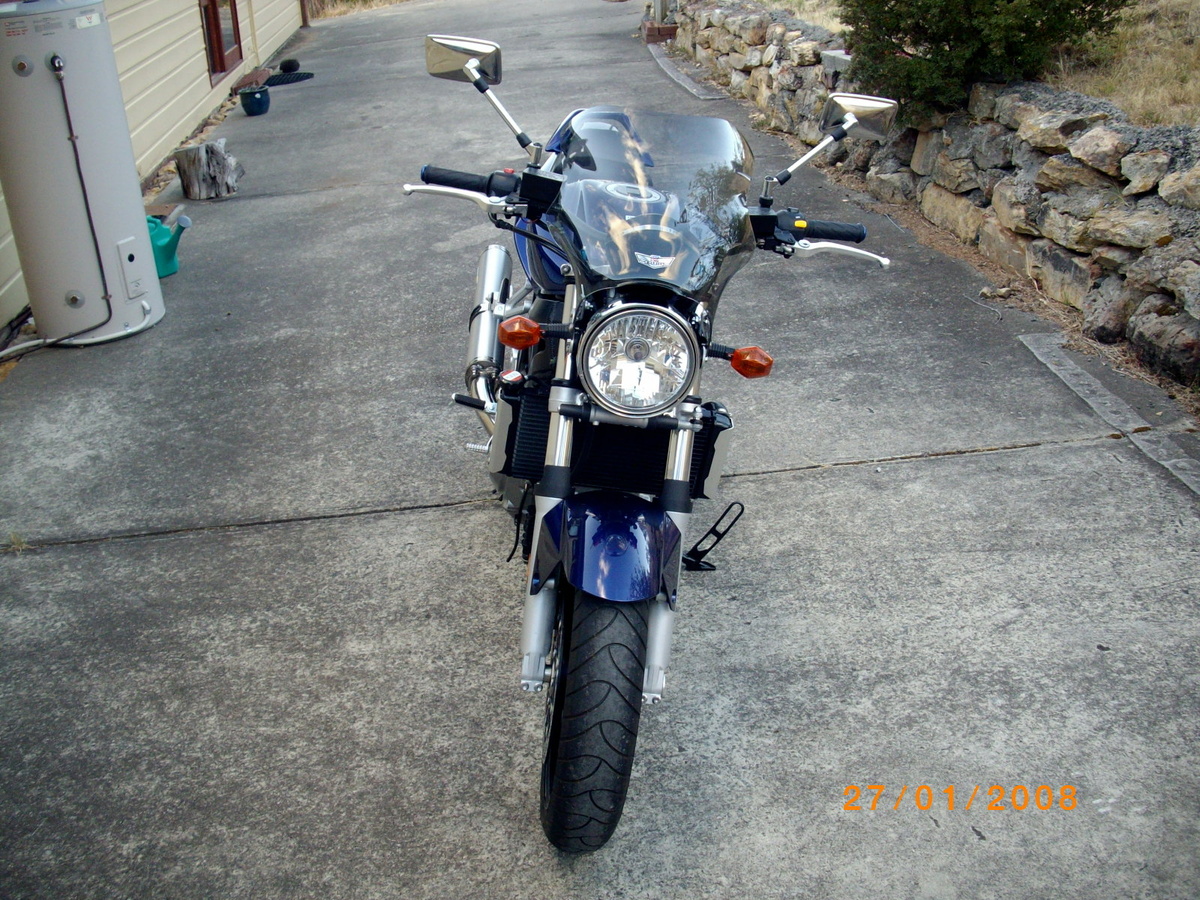

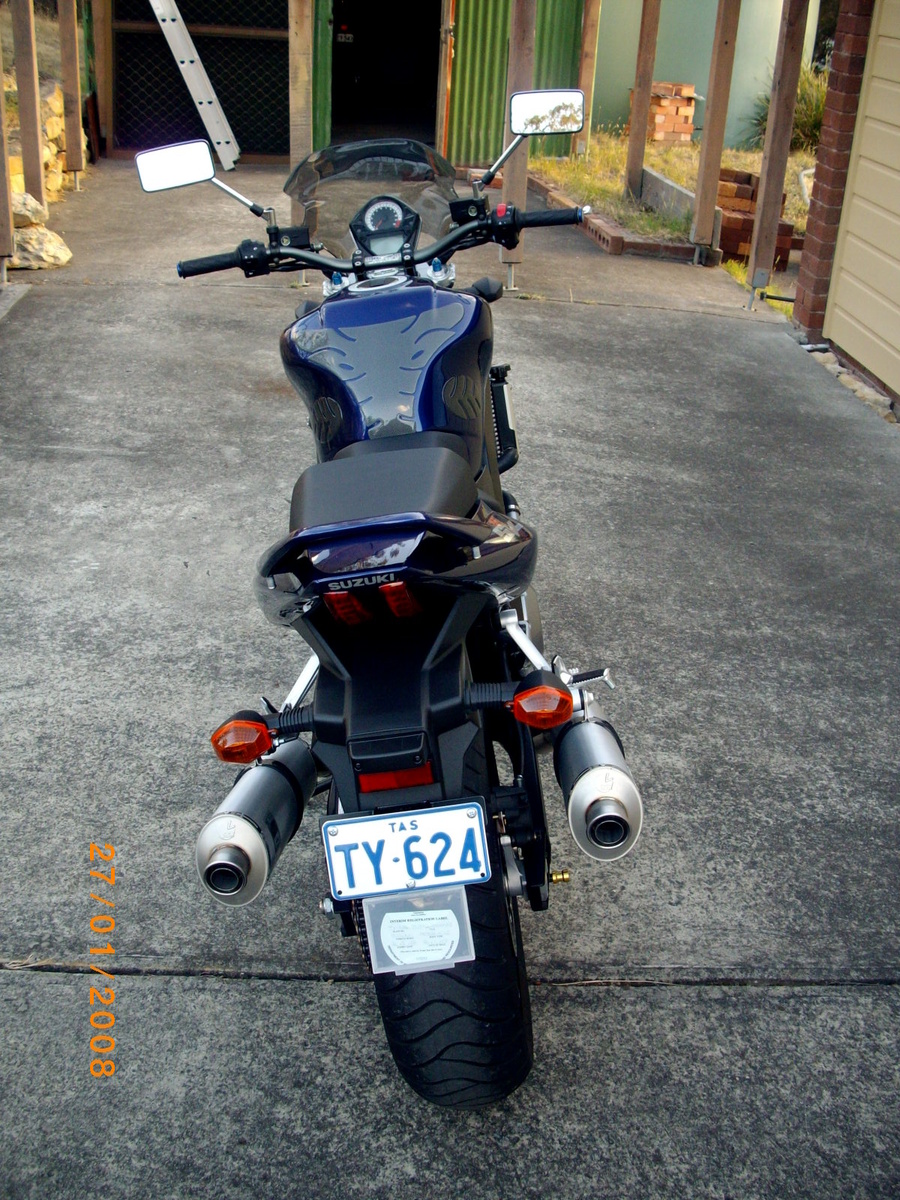

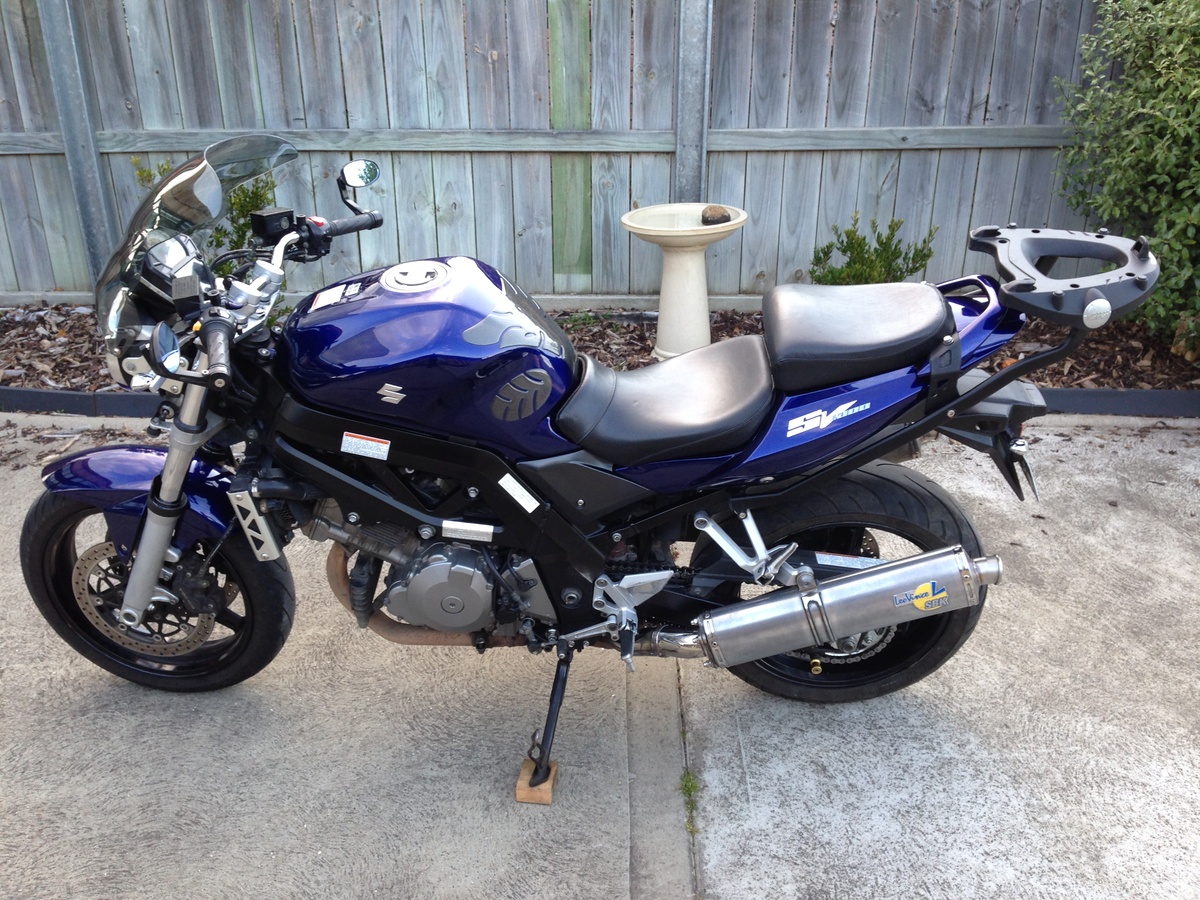

2006 Suzuki SV1000N
| Suzuki Global Digital Archive Website: www.globalsuzuki.com | |
| Suzuki Specifications from www.moto-data.net | |
| Model | SV 1000N |
| Years | 2005-06 |
| Engine | Four stroke, 90° V-twin, DOHC, 4 valves per cylinder |
| Capacity | 996 cc / 60.7 cu-in |
| Bore x Stroke | 98 x 66 mm |
| Cooling System | Liquid cooled |
| Compression Ratio | 11.3:1 |
| Lubrication | Wet sump |
| Engine Oil | Synthetic, 10W/40 |
| Induction | Dual Throttle Valve fuel-injection system |
| Ignition | Digital transistorized |
| Starting | Electric |
| Max Power | 90.9 kW / 123.5 hp / @ 9000 rpm |
| Max Torque | 102 Nm / 10.4 kgf-m / 75.2 lb-ft @ 7200 rpm |
| Clutch | Wet, multiple discs, hydraulic operated |
| Transmission | 6 Speed |
| Final Drive | Chain |
| Front Suspension | 46 mm Telescopic fork, cartridge-type, adjustable preload, compression and rebound damping |
| Front Wheel Travel | 120 mm / 4.5 in |
| Rear Suspension | Link-type, 7-way preload, compression and rebound damping adjustable |
| Rear Wheel Travel | 130 mm / 5.1 in |
| Front Brakes | 2 x 310 mm Discs, 4 piston calipers |
| Rear Brakes | Single 220 mm disc, 2 piston caliper |
| Front Wheel | 3.50 x 17 |
| Rear Wheel | 5.50 x 17 |
| Front Tyre | 120/70-17 |
| Rear Tyre | 180/55-17 |
| Dimensions | Length 2085 mm / 82.0 in Width 745 mm / 29.3 in Height 1170 mm / 46.0 in |
| Wheelbase | 1430 mm / 55.9 in |
| Seat Height | 810 mm / 31.8 in |
| Ground Clearance | 150 mm / 5.9 in |
| Dry Weight | 185 kg / 407.8 lbs |
| Wet Weight | 208 kg / 458.5 lbs |
| Fuel Capacity | 17 Litres / 4.5 US gal / 3.7 Imp gal |
| Fuel Consumption Average | 5.5 L/100 km / 18.2 km/l / 42.8 US mpg / 51.4 Imp mpg |
| Standing ¼ Mile | 11.0 sec |
| Top Speed | 229.7 km/h / 142.7 mph |
