Specifications

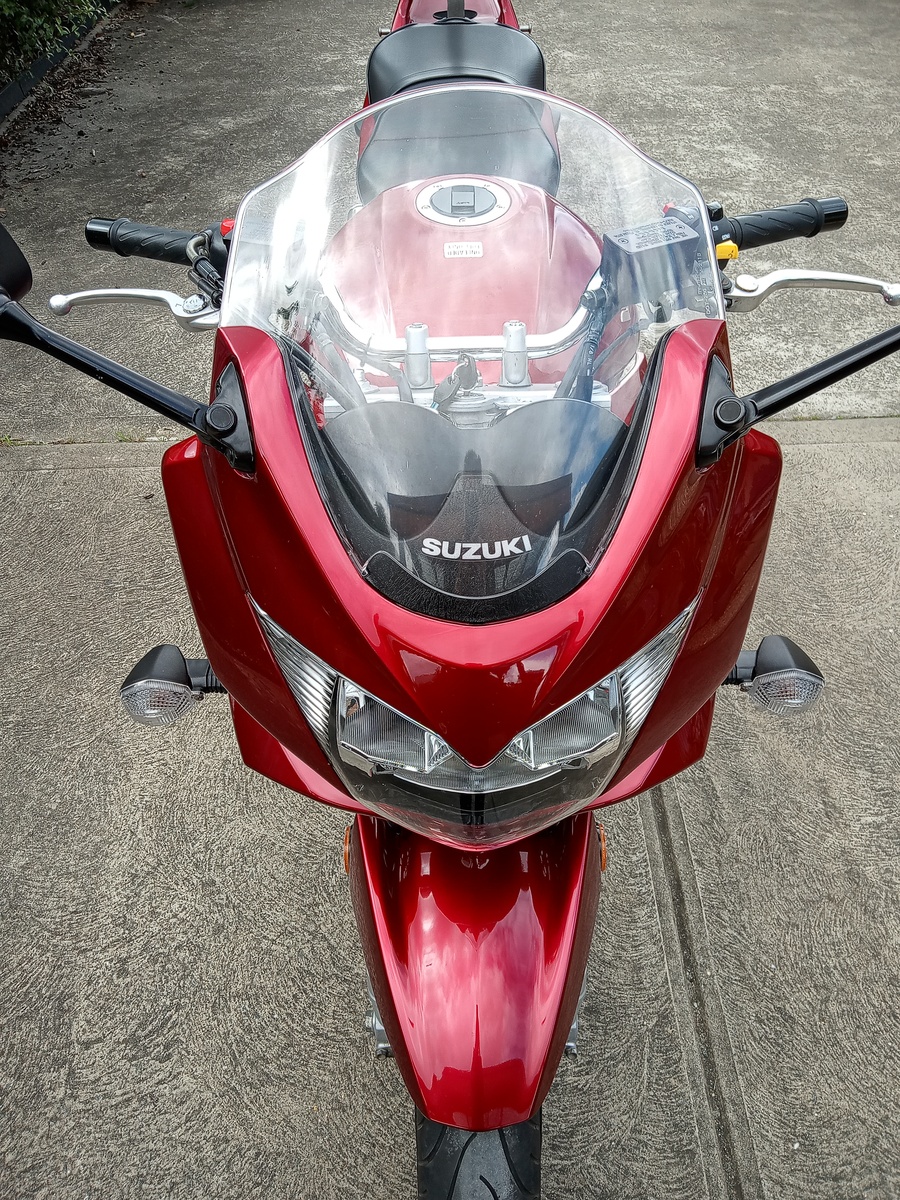

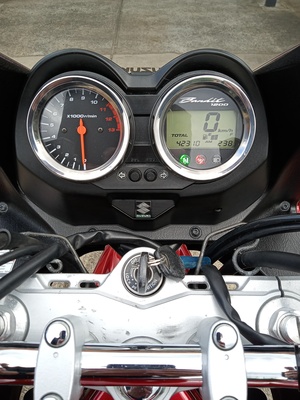

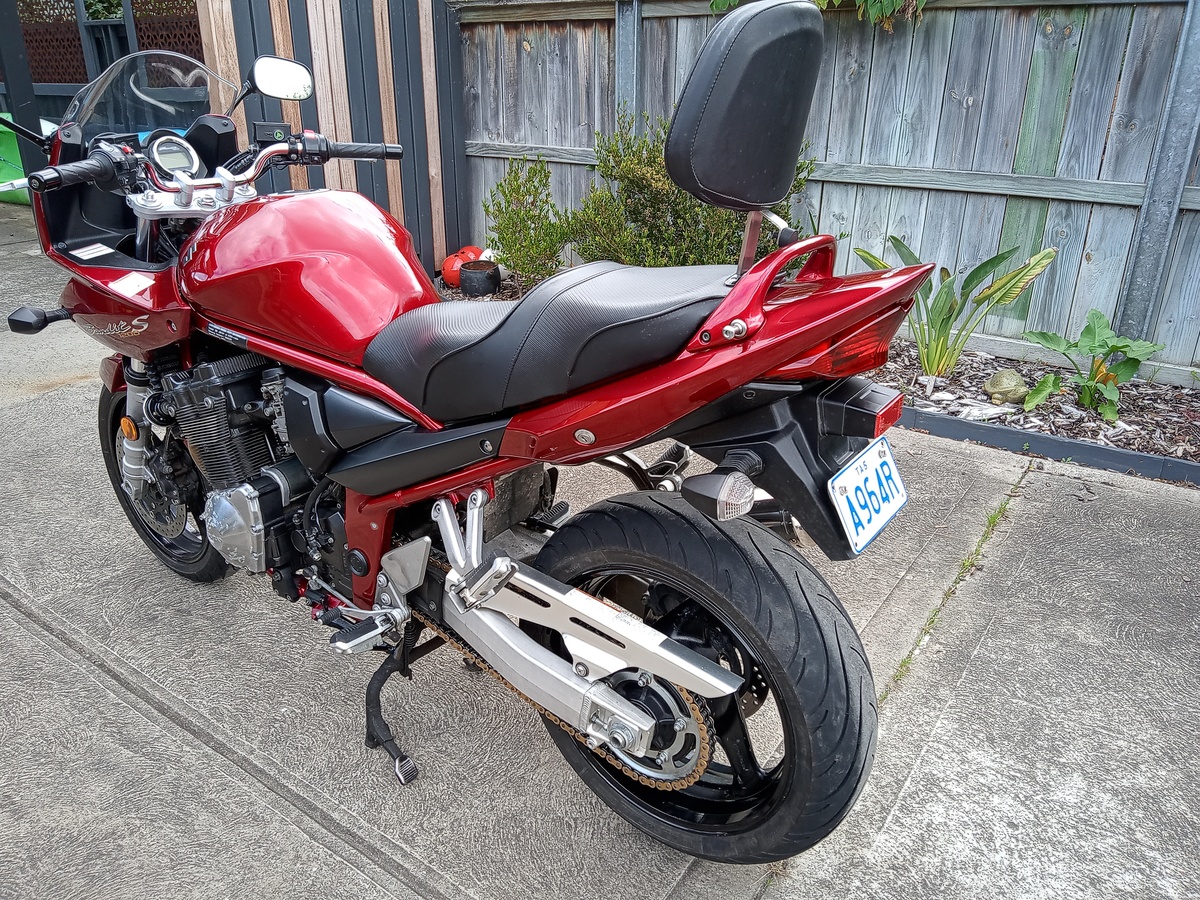

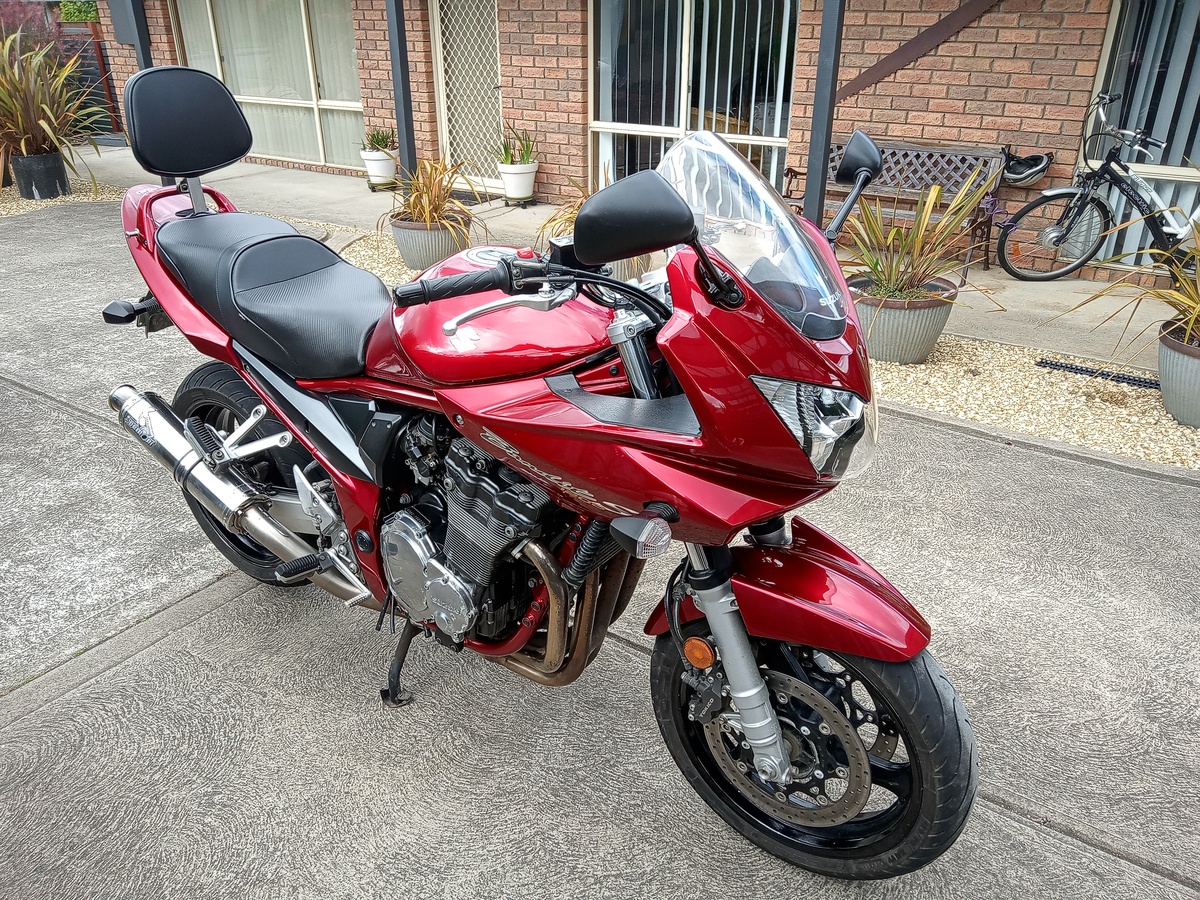

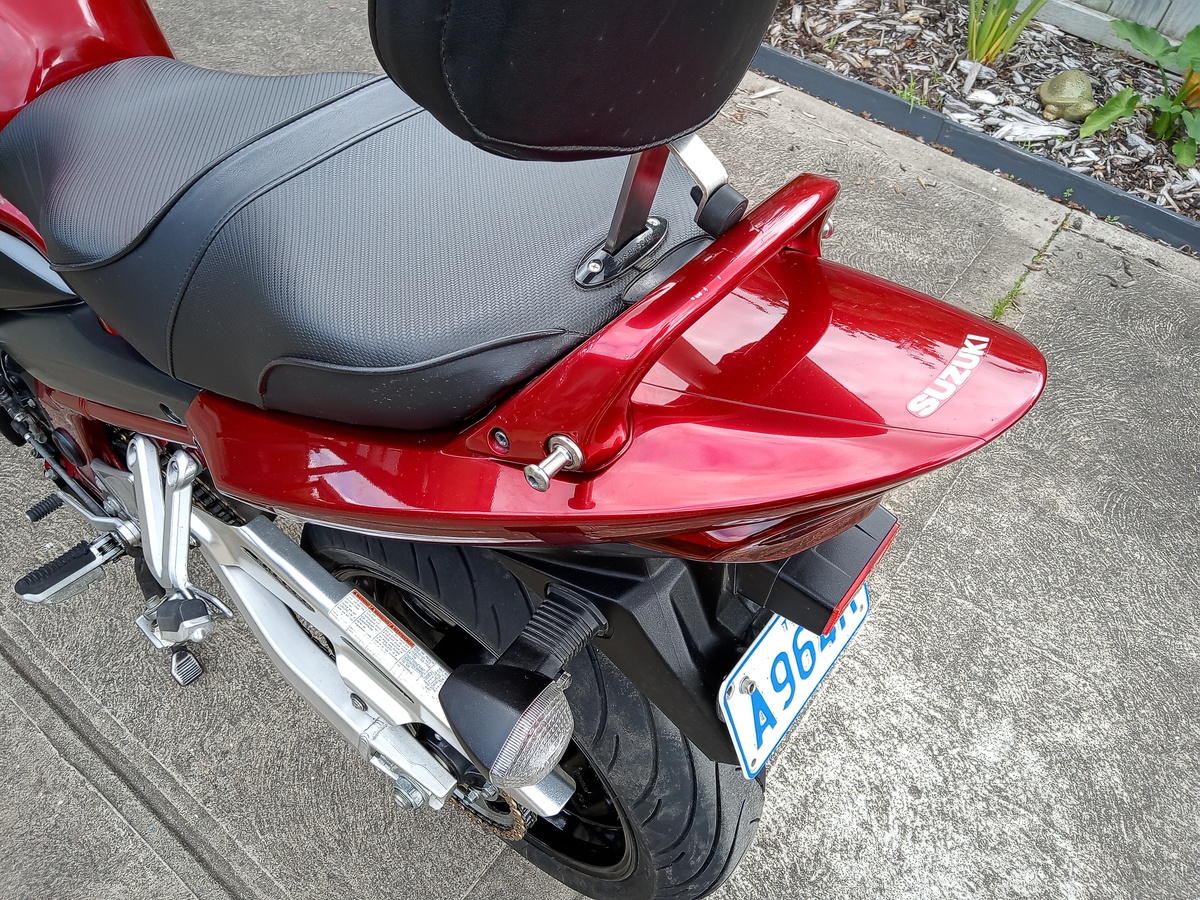

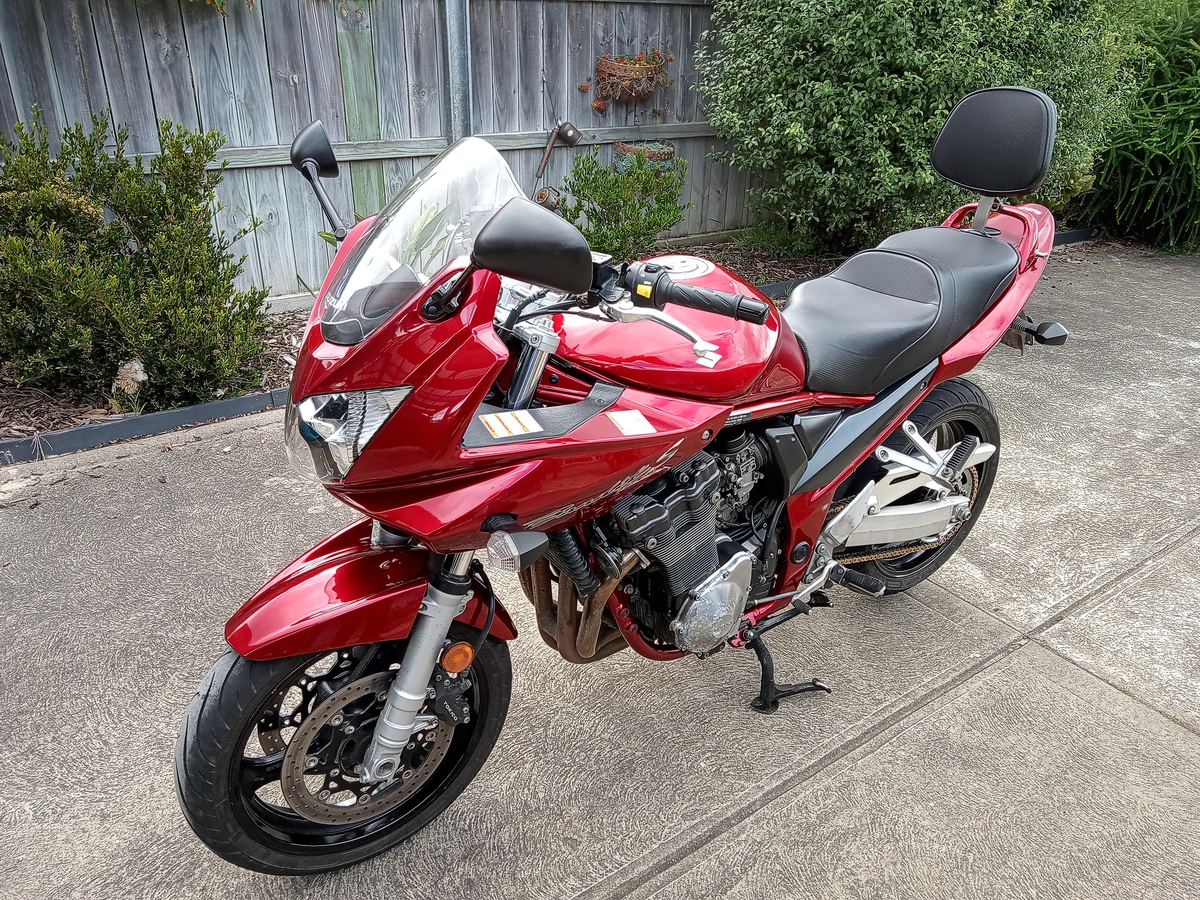

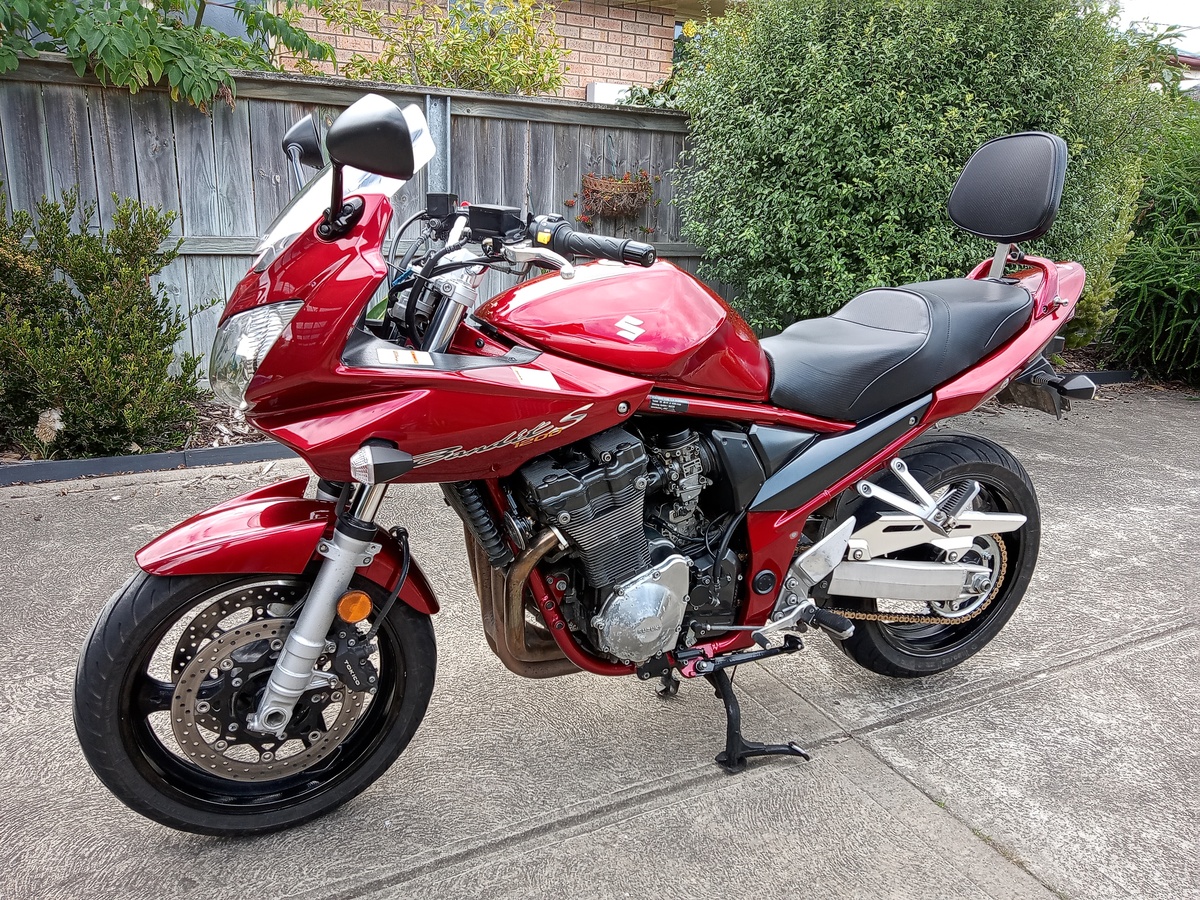

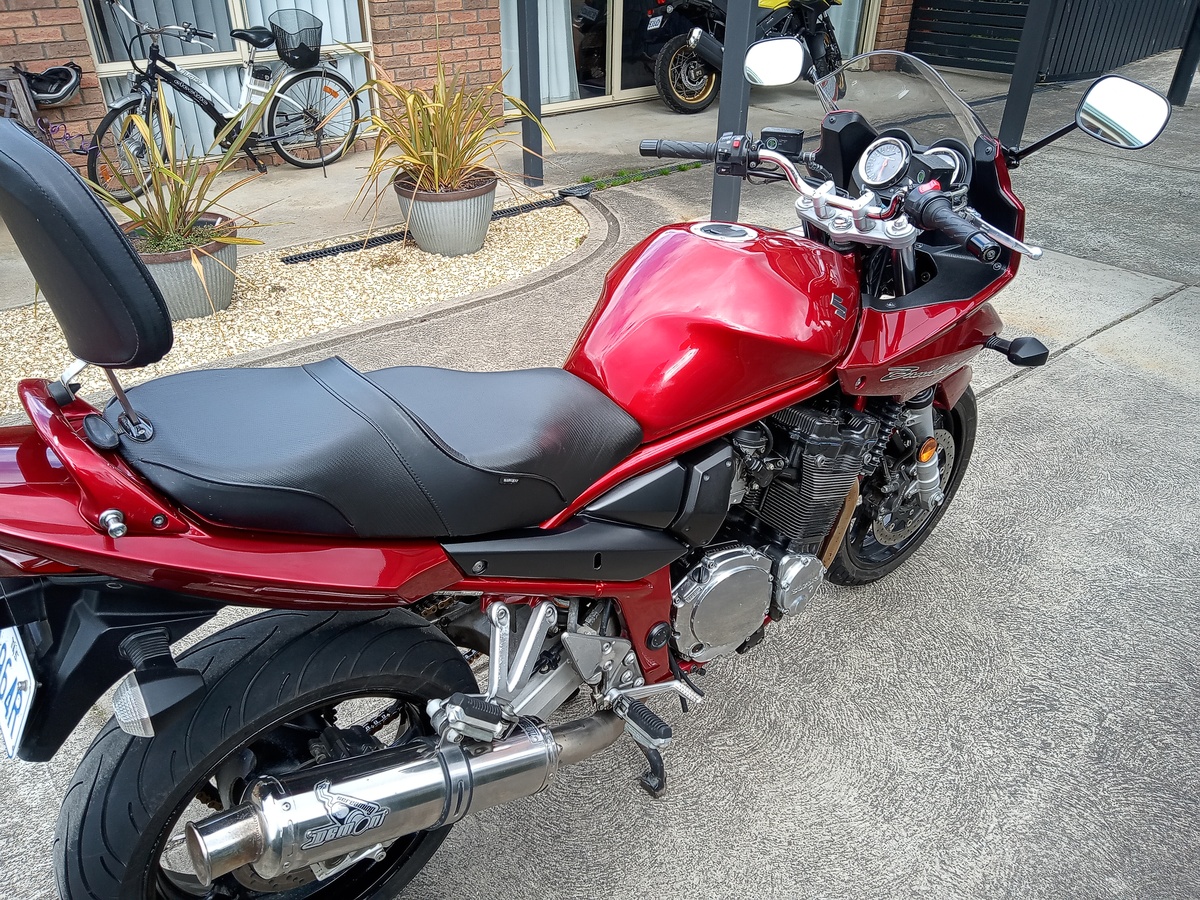

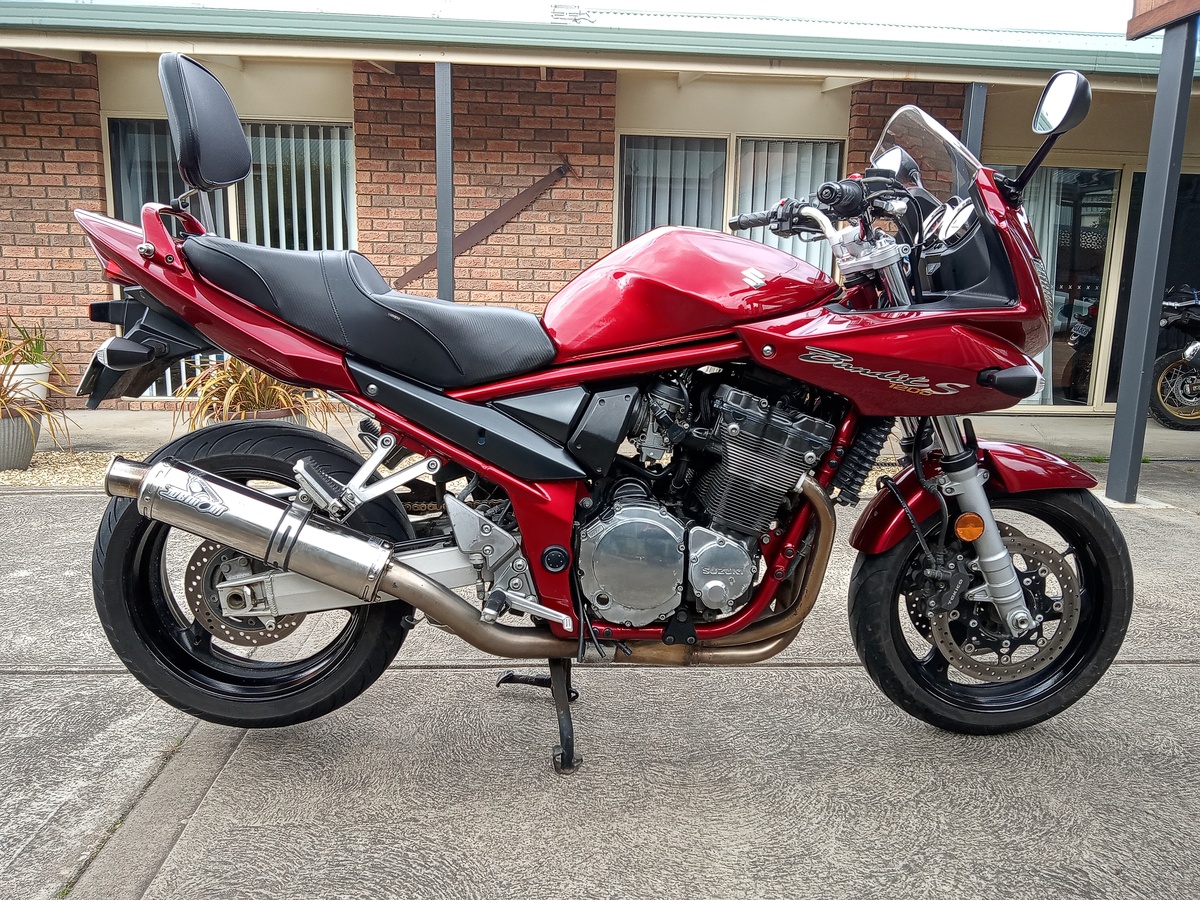

2006 Suzuki GSF1200S Bandit
| Suzuki Global Digital Archive Website: www.globalsuzuki.com | |
| Suzuki Specifications from www.moto-data.net | |
| Model | GSF 1200S Bandit |
| Years | 2004-06 |
| Engine | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder. |
| Capacity | 1157 cc / 30.6 cu in |
| Bore x Stroke | 79 x 59 mm |
| Compression Ratio | 9.5:1 |
| Cooling System | Air/oil cooled |
| Induction | 4 x Mikuni BSR36 carburetors |
| Ignition | Digital transistorized |
| Starting | Electric |
| Max Power | 71.5 kW / 98 hp @ 8500 rpm |
| Max Torque | 91.7 Nm / 9.4 kgf-m / 67.6 lb-ft@ 6500 rpm |
| Transmission | 5 Speed |
| Final Drive | Chain |
| Front Suspension | 43 mm Telescopic, oil damped, preload adjustable |
| Rear Suspension | Mono-shock, link-type, 4-way adjustable rebound damping, 7-way adjustable preload |
| Front Brakes | 2 x 310mm Discs, 6 piston calipers |
| Rear Brakes | Single 240mm disc, 2 piston caliper |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| Seat Height | 835 mm / 32.9 in |
| Dry-Weight | 220 kg / 485 lbs |
| Fuel Capacity | 20.0 litres / 5.2 US gal / 4.4 Imp gal |
| Consumption Average | 5.8 L/100 km / 17.2 km/l / 40.5 US mpg / 48.6 Imp mpg |
| Standing ¼ Mile | 11.7 sec |
| Top Speed | 235.8 km/h / 146.5 mph |
