Specifications

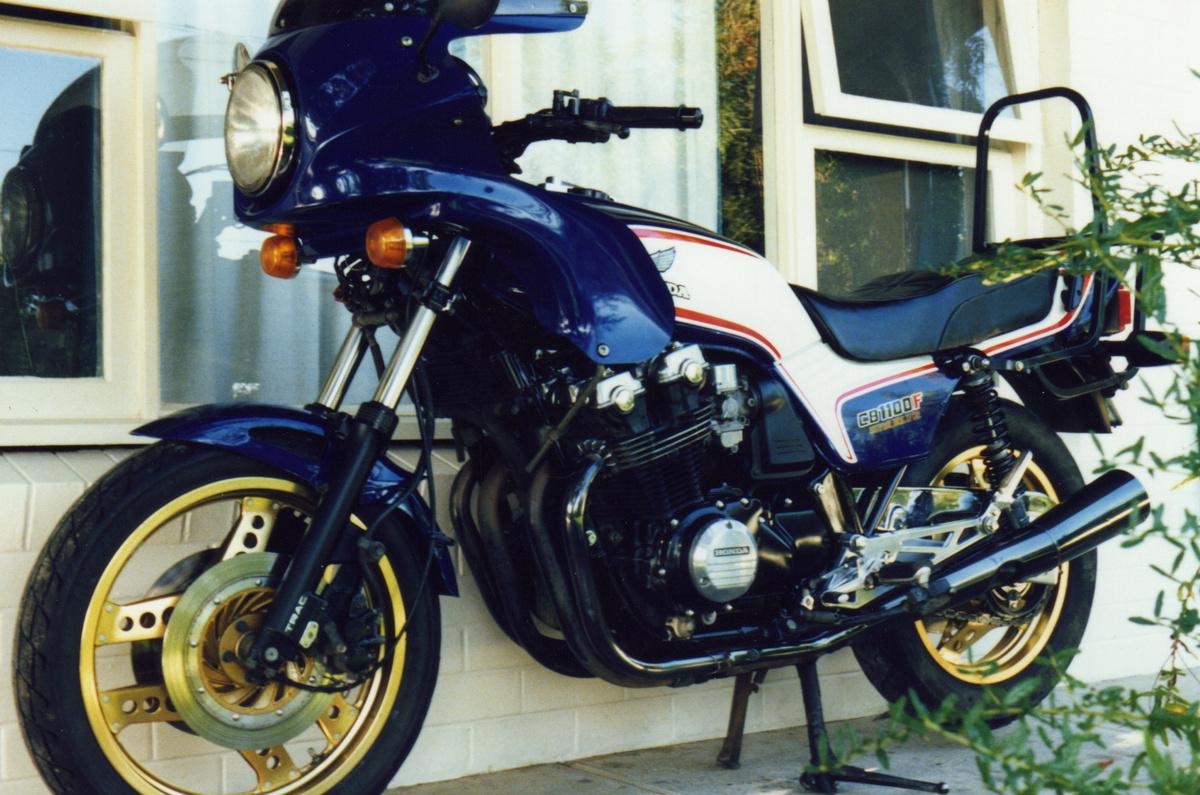

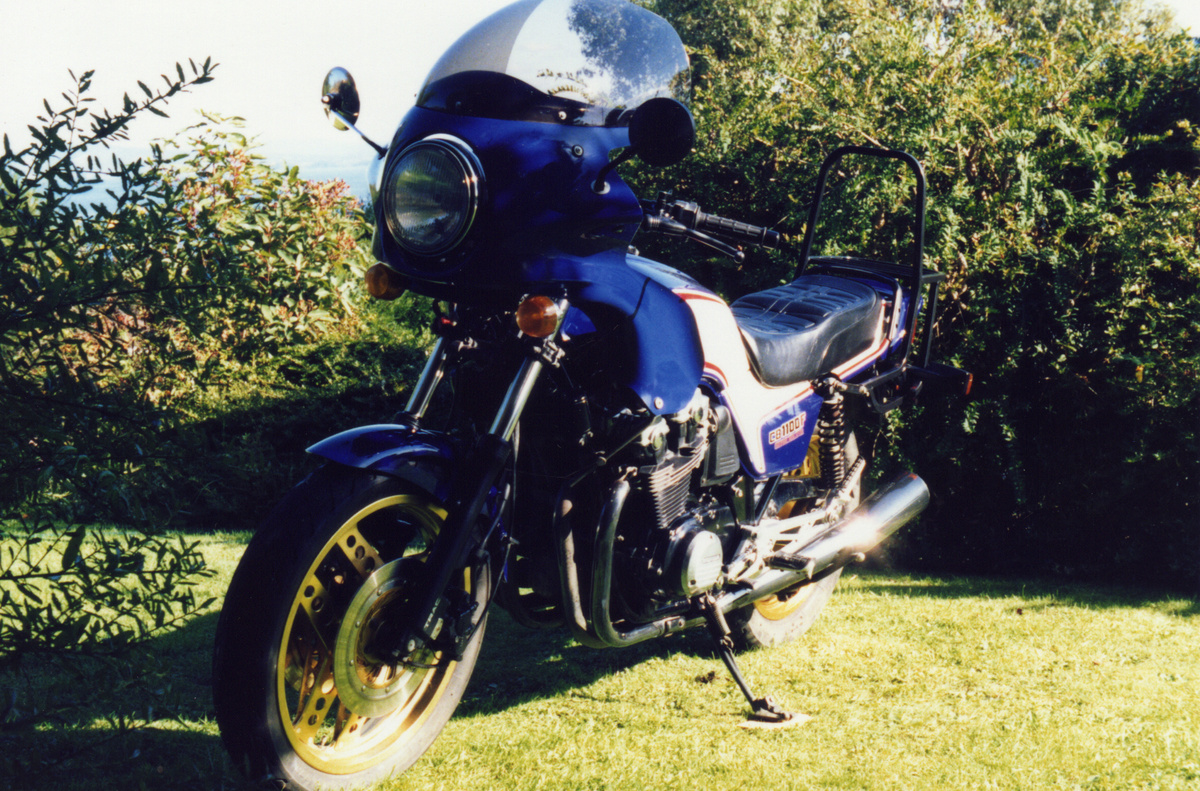

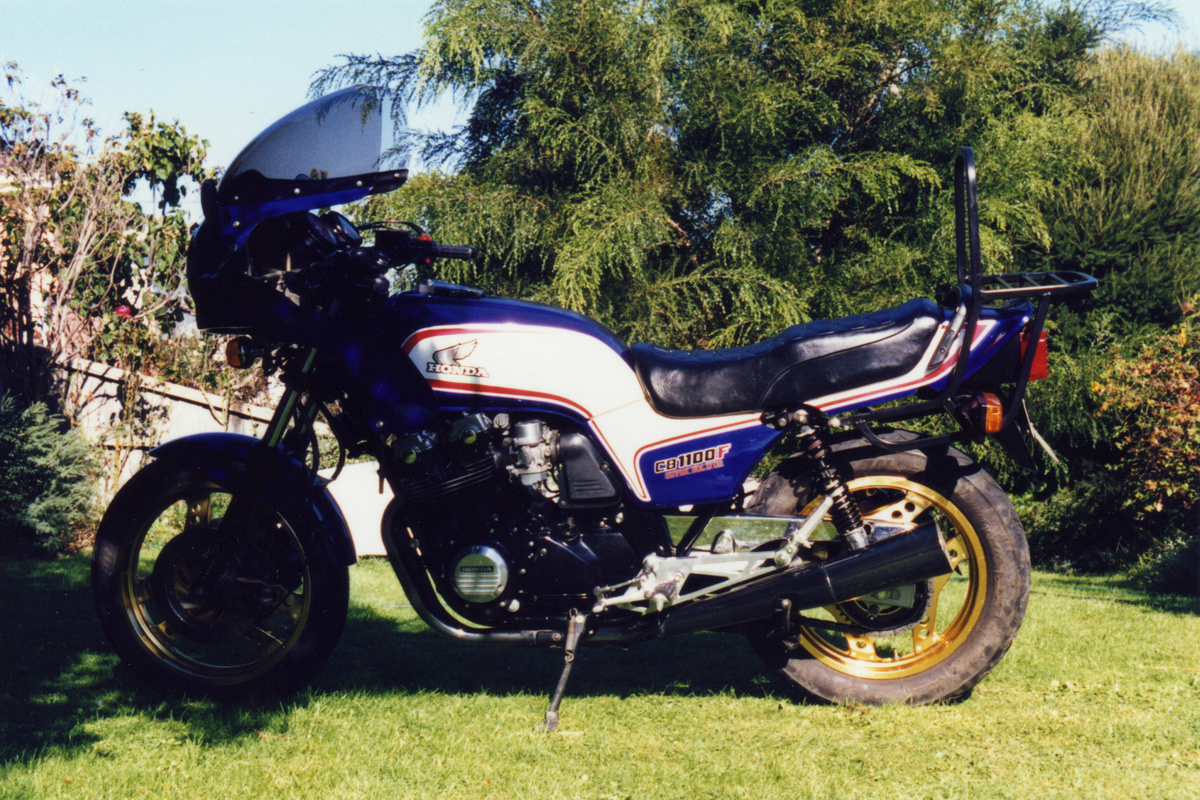

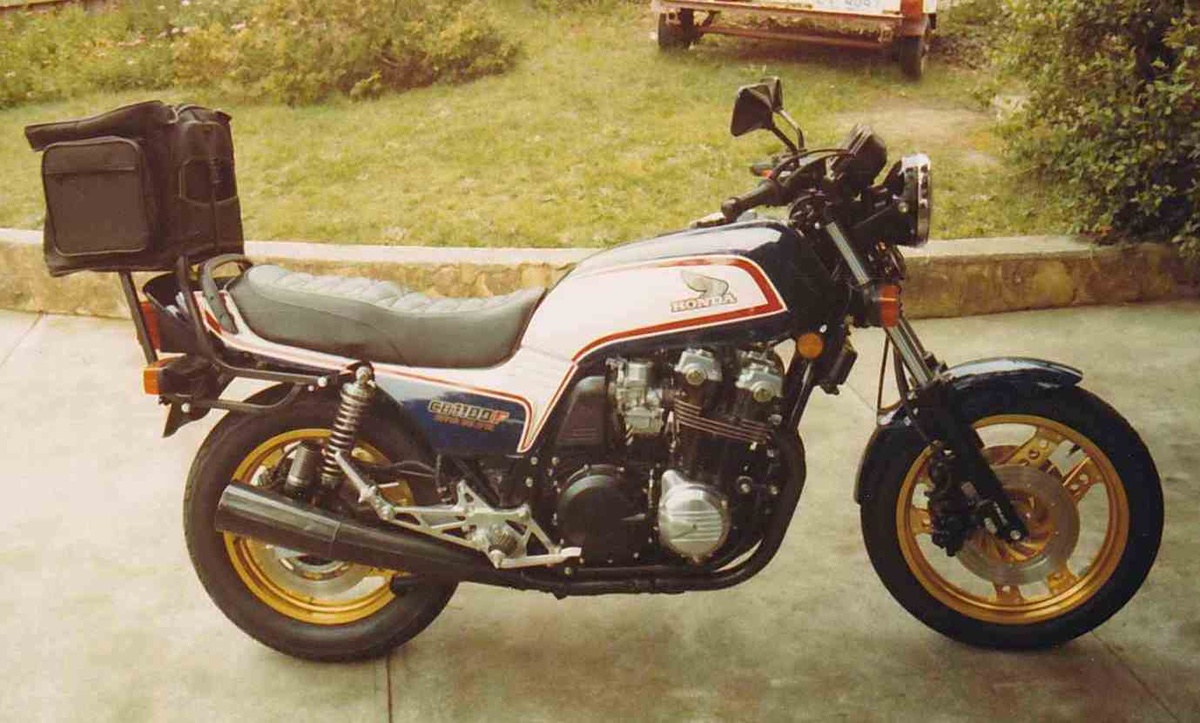

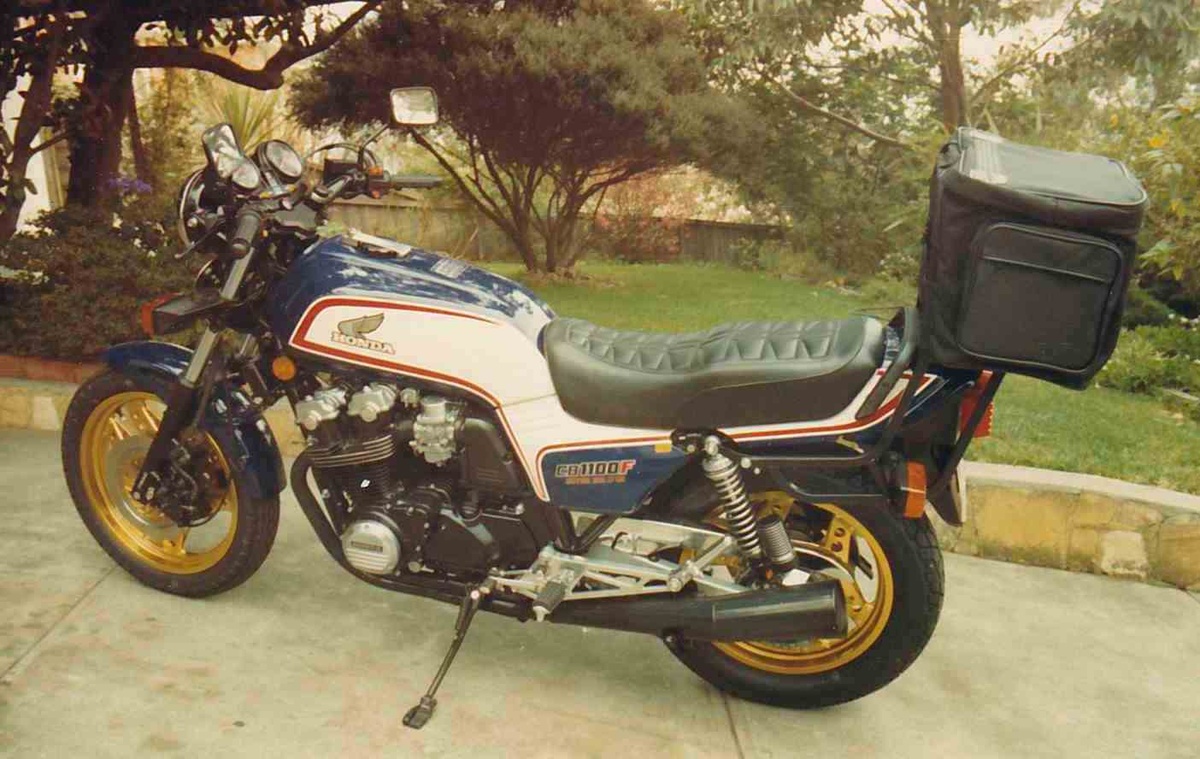

1983 Honda CB1100F
| Honda Specifications from www.moto-data.net | |
| Model | CB 1100F Bol D'Or |
| Years | 1983 |
| Engine | Four stroke, transverse four cylinders, DOHC, 4 valve per cylinder. |
| Capacity | 1062 cc / 64.8 cu-in |
| Bore x Stroke | 70 x 69 mm |
| Cooling System | Air cooled |
| Compression Ratio | 9.7:1 |
| Induction | 4x 33mm Keihin carburetors |
| Ignition | Electronic |
| Starting | Electric |
| Max Power | 110 hp / 81 kW @ 8500 rpm |
| Max Torque | 98 Nm / 72.2 lb-ft @ 7500 rpm |
| Transmission | 5 Speed |
| Final Drive | Chain |
| Front Suspension | Adjustable telescopic hydraulic fork. |
| Rear Suspension | Swinging arm fork with adjustable Telehydraulic shocks absorbers. |
| Front Brakes | 2x 296mm discs 2 piston calipers |
| Rear Brakes | Single 296mm disc 2 piston caliper |
| Front Tyre | 100/90 V18 |
| Rear Tyre | 130/90 V17 |
| Wheelbase | 1520 mm / 59.8 in |
| Seat Height | 795 mm / 31.2 in |
| Dry Weight | 243 kg / 533 lbs |
| Wet Weight | 266.0 kg / 586.4 lbs |
| Fuel Capacity | 20 Litres / 4.4 Imp gal |
| Fuel Consumption Average | 16.9 kml, 47 mpg |
| Standing ¼ Mile | 11.1 sec / 122.4 mph |
| Top Speed | 223 km/h / 138.5 mph |
